Серво задвижване, Lexium 32 single phase supply voltage 115/230 V, 0.8/1.6 kW | Spark & Co
  • 3D
|

СКУ: LXM32SD30M2

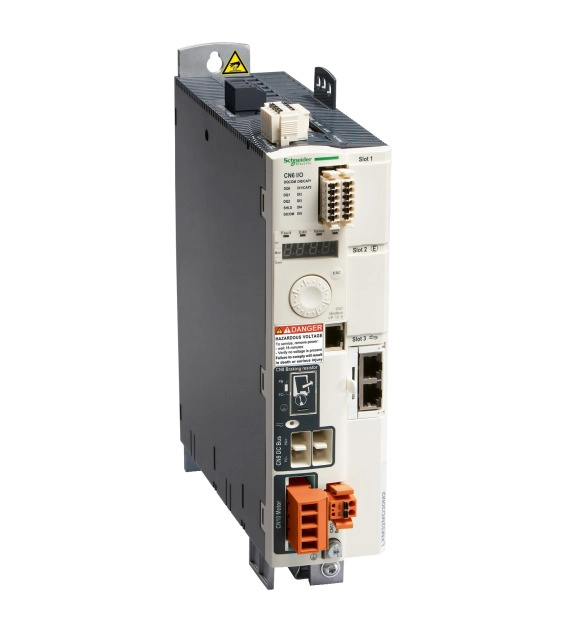

Серво задвижване, Lexium 32 single phase supply voltage 115/230 V, 0.8/1.6 kW

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Degree of protection (IP)
    EV000154
  • Supporting protocol for other bus systems
    FALSE
  • With optical interface
    FALSE
  • Number of analogue outputs
    1
  • Width
    68
  • With control element
    FALSE
  • Number of digital inputs
    6
  • With PC connection
    FALSE
  • Supporting protocol for BACnet
    FALSE
  • Number of digital outputs
    2
  • Mains frequency
    EV008015
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Application in domestic- and commercial area permitted
    FALSE
  • Integrated breaking resistance
    FALSE
  • Application in industrial area permitted
    TRUE
  • 4-quadrant operation possible
    FALSE
  • Number of phases input
    EV000599
  • Max. output voltage
    230
  • Nominal output current I2N
    10
  • Number of analogue inputs
    3
  • Type of converter
    EV000154
  • Mains voltage
    115
  • Max. output frequency
    8
  • Height
    270
  • Depth
    237
  • Number of phases output
    EV000599
  • Max. output at quadratic load at rated output voltage
    1.6
  • Max. output at linear load at rated output voltage
    1.6
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces RS-485
  • Number of HW-interfaces industrial Ethernet
  • Number of HW-interfaces RS-232
  • Number of HW-interfaces other

This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 7kW. The motion servo drive features integrated EMC filter. It offers 2 capture discrete inputs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V, a continuous output current of 10A at 8kHz and a continuous power of 800W at 115V. It is furnished with RJ45 connector (labelled CN7) for Modbus. It offers electrical isolation between power and control. It provides Modbus and SERCOS III communication interface. It is an IP20 rated product. Its dimensions are 68mm (width) x 237mm (depth) x 270mm (height). It weighs 2.1kg. This product is certified by CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BMH (70mm, 2 motor stacks). Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
