Серво задвижване, Lexium 28, three phase 200...230 V, 4.5 kW | Spark & Co
  • 3D
|

СКУ: LXM28AU45M3X

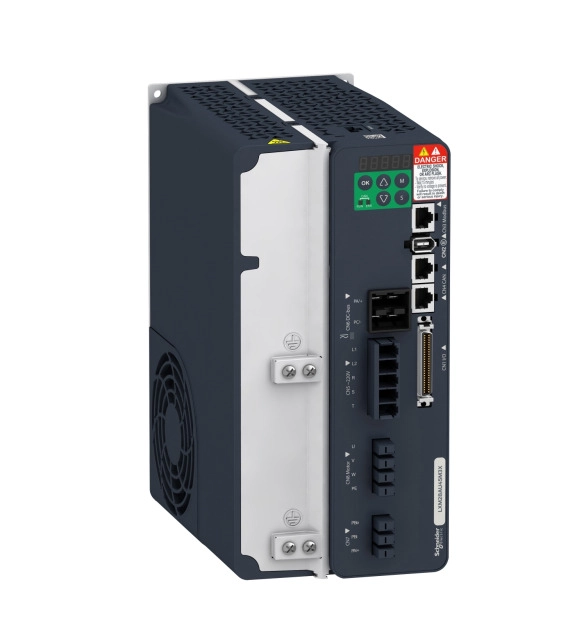

Серво задвижване, Lexium 28, three phase 200...230 V, 4.5 kW

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Supporting protocol for other bus systems
    FALSE
  • With control element
    TRUE
  • With optical interface
    FALSE
  • Supporting protocol for Modbus
    TRUE
  • Number of HW-interfaces RS-422
    2
  • Supporting protocol for CAN
    TRUE
  • Number of HW-interfaces RS-485
    1
  • Width
    116
  • Number of analogue outputs
    1
  • Depth
    186
  • Number of digital inputs
    6
  • Height
    234
  • With PC connection
    FALSE
  • Supporting protocol for BACnet
    FALSE
  • Number of digital outputs
    2
  • Mains frequency
    EV008015
  • Number of phases input
    EV000069
  • Number of phases output
    EV000069
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Application in industrial area permitted
    TRUE
  • 4-quadrant operation possible
    FALSE
  • Application in domestic- and commercial area permitted
    TRUE
  • Number of analogue inputs
    3
  • Max. output voltage
    240
  • Max. output frequency
    8
  • Integrated breaking resistance
    TRUE
  • Type of converter
    EV009198
  • Mains voltage
    220
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces USB
  • Number of HW-interfaces industrial Ethernet
  • Number of HW-interfaces RS-232
  • Number of HW-interfaces other
  • Max. output at quadratic load at rated output voltage
    4.5
  • Max. output at linear load at rated output voltage
    4.5
  • Nominal output current I2N
    22.9

This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. It is a 3-phase servo drive, powered by 200V to 230V, its output power is 4.5kW. It operates via a PTI/PTO interface comprising 6 digital inputs and 3 digital outputs. This servo drive embeds a CANopen/CANmotion fieldbus interface. It controls a nominal speed of rotation from 1500rpm to 2000rpm. It has a pulse-train-input/output interface, 1 digital input, a position sequence mode, 1 Analog input for speed/torque control mode, and a safety function STO. It measures 116mm wide, 234mm high, and 186mm deep and it weighs 3.2kg. The Servo drive receives a command signal from a control system, amplifies the signal, and transmits electric current to the servo motor in order to run motion. This servo drive is certified by CE, CULus, and CSA. This servo drive is compatible with 3.5kW and 4.5kW BCH2 servo motors. It is sold in a 1-piece package. It installs into the control cabinet, in a vertical position (±10°) required for its cooling. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines.
