СКУ: XPSMCMCP0802
Контролер с 8 входа 2 изхода следи разширителни модули с винтови клеми
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Rail mounting possible
TRUE
-
With detachable clamps
TRUE
-
Height
99
-
Width
22.5
-
With approval according to UL
TRUE
-
Evaluation inputs
EV000154
-
With approval for TÜV
TRUE
-
With approval for BG BIA
FALSE
-
Suitable for monitoring of valves
FALSE
-
Suitable for monitoring of emergency-stop circuits
TRUE
-
SIL according to IEC 61508
EV000069
-
Performance level according to EN ISO 13849-1
EV010982
-
Suitable for monitoring of position switches
TRUE
-
Suitable for monitoring of tactile sensors
TRUE
-
Type of safety according to IEC 61496-1
EV000070
-
Suitable for monitoring of magnetic switches
TRUE
-
Suitable for monitoring of proximity switches
TRUE
-
Suitable for monitoring of optoelectronic protection equipment
TRUE
-
Model
EV009268
-
With feedback circuit
TRUE
-
With start input
TRUE
-
Stop category according to IEC 60204
EV010692
-
Depth
114.5
-
With muting function
TRUE
-
Number of outputs, safety related, delayed, with contact
-
Number of outputs, safety related, undelayed, with contact
-
Number of outputs, signalling function, undelayed, with contact
-
Number of outputs, signalling function, delayed, with contact
-
Number of outputs, signalling function, undelayed, semiconductors
2
-
Number of outputs, safety related, undelayed, semiconductors
2
-
Number of outputs, safety related, delayed, semiconductors
2
-
Number of outputs, signalling function, delayed, semiconductors
2

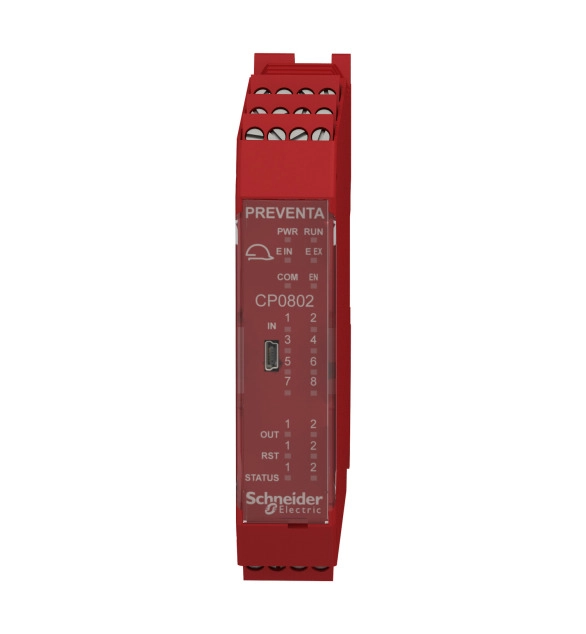

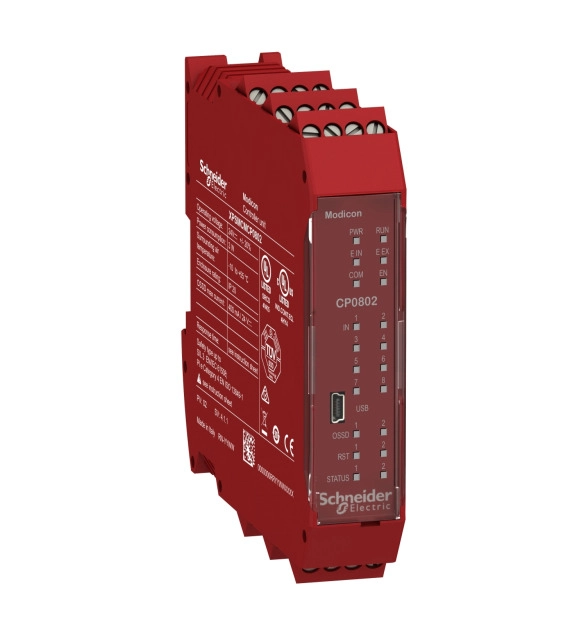

This Modicon MCM safety controller CPU is supplied with 24Vdc, has 8 safe digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive screw clamp terminals. It embeds a Mini USB 2.0 connector to receive the configuration done with the software EcoStruxure Machine Expert - HVAC. It is an appropriate solution for machines with a small number of safety functions requiring the configuration flexibility of a safety controller. It can be used as standalone or with fourteen expansion modules. The system is expandable up to 128 inputs, 16 outputs and up to 32 diagnostic status outputs, ideal for machines requiring multiple safety function monitoring. This safety controller CPU figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, communication, master enable, restart signal, output channels). It is a CPU with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safety controller CPU instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
