СКУ: 7311141000

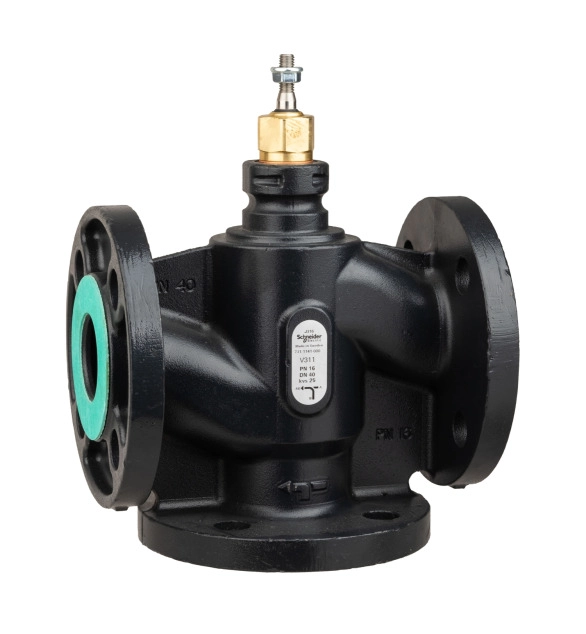

Venta V311 Globe Valve, 3-Way, PN16, Flanged, DN40, 25 Kvs, Nodular Iron Body & Seat, Brass plug,
-
Brand
Schneider Electric
-
Surface protection
EV006034
-
Material quality
EV000154
-
Flange compression class
EV020104
-
Connections
EV004442
-
Article compression class
EV020104
-
Max. medium temperature (continuous)
120
-
Characteristic curve
EV021552
-
Min. medium temperature (continuous)
-20
-
Stroke length
20
-
Leakage loss of Kvs value
0.005
-
Kvs value
25
-
Housing material
EV000117
-
Outer pipe diameter all connections
40
-
Nominal diameter
EV020213
The V241 is an externally threaded 2-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Polished Stainless Steel seats ensure a high differential pressure and low leakage. The crown plug provides precise fluid control with a rangeability of 100:1 and is of a self cleaning design for reliable operation. Valve size: DN32, G External, Flow capacity, Kvs: 16 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 600 Kpa. EPDM seals provide a working temperature range of -20 °C to + 150 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G2 External (Male) Connection.
