Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN15, Kvs 1.0, Nodular Iron, Stainless Plug and Seat, Stem Up Closed. | Spark & Co
  • 3D
|

СКУ: 7213118000

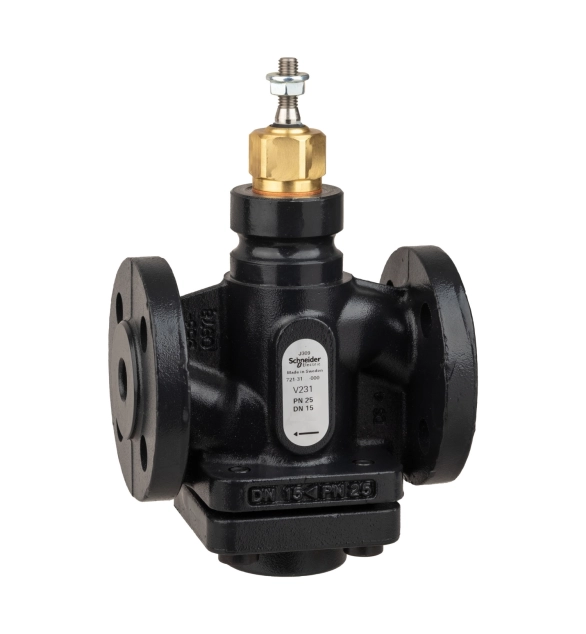

Venta V231 Globe Valve, 2-Way, PN25, Flanged, DN15, Kvs 1.0, Nodular Iron, Stainless Plug and Seat, Stem Up Closed.

  • Brand
    Schneider Electric
  • Suitable for heating
    TRUE
  • Suitable for cooling
    TRUE
  • Surface protection
    EV000154
  • Connection 1
    EV000106
  • With coupling connection 1
    FALSE
  • Flange compression class
    EV020104
  • Stroke length
    30
  • Article compression class
    EV020104
  • Suitable for process water
    TRUE
  • Characteristic curve
    EV021552
  • Suitable for tap water
    TRUE
  • Automatic flow control
    FALSE
  • Material housing
    EV000117
  • Material quality
    EV020188
  • Outer pipe diameter connection 1
    100
  • Kvs value
    130
  • Kv value
    130
  • Leakage loss of Kvs value
    0.05
  • Contour code connection 1
    EV000154
  • With flow measuring point
    FALSE
  • DVGW quality mark
    FALSE
  • Tested according to TÜV GS
    FALSE
  • DIN-CERTCO certificate
    FALSE
  • Nominal diameter connection 1
    EV020116

The V241 is an externally threaded 2-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Polished Stainless Steel seats ensure a high differential pressure and low leakage. The crown plug provides precise fluid control with a rangeability of 100:1 and is of a self cleaning design for reliable operation. Valve size: DN40, G External, Flow capacity, Kvs: 25 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 600 Kpa. EPDM seals provide a working temperature range of -20 °C to + 150 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G2-1.4 External (Male) Connection.
