Thermal overload relay, TeSys Deca, 690VAC, 2.5 to 4A, 1NO+1NC, class 10A, lugs terminal, for unbalanced loads | Spark & Co
  • 3D
|

СКУ: LR3D086

Thermal overload relay, TeSys Deca, 690VAC, 2.5 to 4A, 1NO+1NC, class 10A, lugs terminal, for unbalanced loads

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Reset function automatic
    TRUE
  • Reset function input
    FALSE
  • Max. rated operation voltage Ue
    690
  • Release class
    EV011240
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Mounting method
    EV008930
  • Reset function push-button
    TRUE
  • Number of auxiliary contacts as change-over contact
  • Adjustable current range
    48

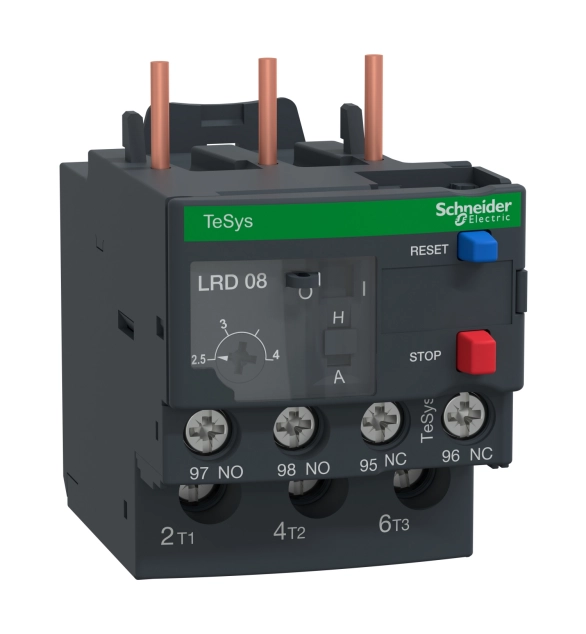

TeSys LRD thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 10A, for protection of 3-phase motors 1.1-1.5kW/400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
