SCHNEIDER ELECTRIC Magnetic latching contactor TeSys F - 3P(3 NO), 150A, 220..230V AC/DC coil | Spark & Co
  • 3D
|

СКУ: CR1F150M7

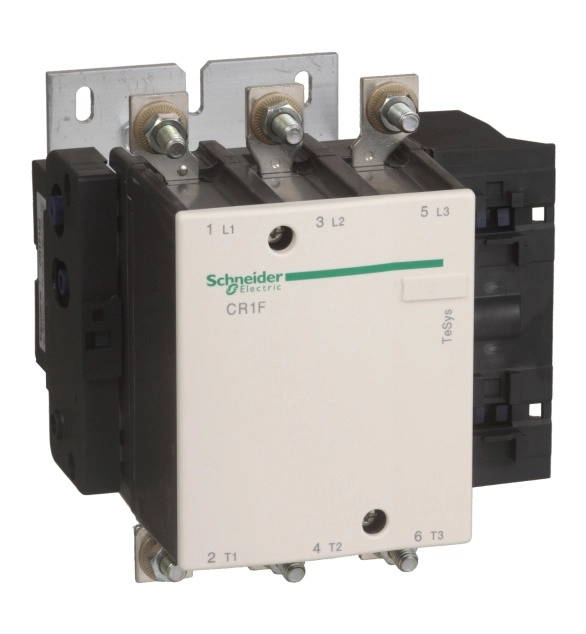

SCHNEIDER ELECTRIC Magnetic latching contactor TeSys F - 3P(3 NO), 150A, 220..230V AC/DC coil

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000509
  • Type of electrical connection of main circuit
    EV008864
  • Rated control supply voltage Us at DC
    220
  • Modular version
    FALSE
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    50
  • Rated operation power at AC-4, 400 V
    22
  • Rated operation power at AC-3, 400 V
    75
  • Rated operation current Ie at AC-1, 400 V
    250
  • Rated operation current Ie at AC-3, 400 V
    150
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of normally closed contacts as main contact

TeSys F magnetic latching contactor, 3 poles (3NO), 150A/1000V AC-3, for motor applications up to 75kW/400V. It provides a double coil 220-230V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.
