Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN50, 38 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed. | Spark & Co
  • 3D
|

СКУ: 7211144000

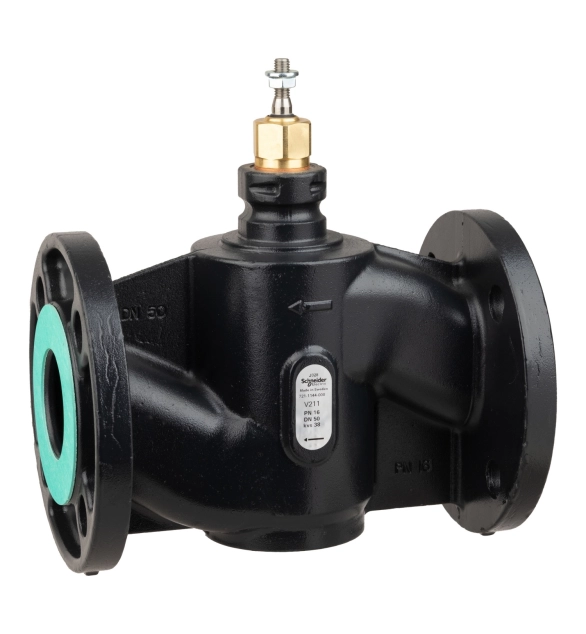

Venta V211 Globe Valve, 2-Way, PN16, Flanged, DN50, 38 kvs, Nodular Iron Body and Seat, Brass Plug, Stem Up Closed.

  • Brand
    Schneider Electric
  • Suitable for cooling
    TRUE
  • Surface protection
    EV006034
  • Material housing
    EV000154
  • Material quality
    EV000154
  • Connection 1
    EV000154
  • Flange compression class
    EV020104
  • Article compression class
    EV020104
  • Max. medium temperature (continuous)
    120
  • Suitable for process water
    TRUE
  • Characteristic curve
    EV021552
  • Suitable for tap water
    TRUE
  • Min. medium temperature (continuous)
    -20
  • Stroke length
    20
  • Automatic flow control
    FALSE
  • Outer pipe diameter connection 1
    15
  • Nominal diameter connection 1
    EV020209
  • Kvs value
    1.6
  • Leakage loss of Kvs value
    0.005

The V311T is an internally threaded 3-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN15, G External, Flow capacity, Kvs: 1.6 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 400 Kpa. EPDM seals provide a working temperature range of -20 °C to + 120 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive).
