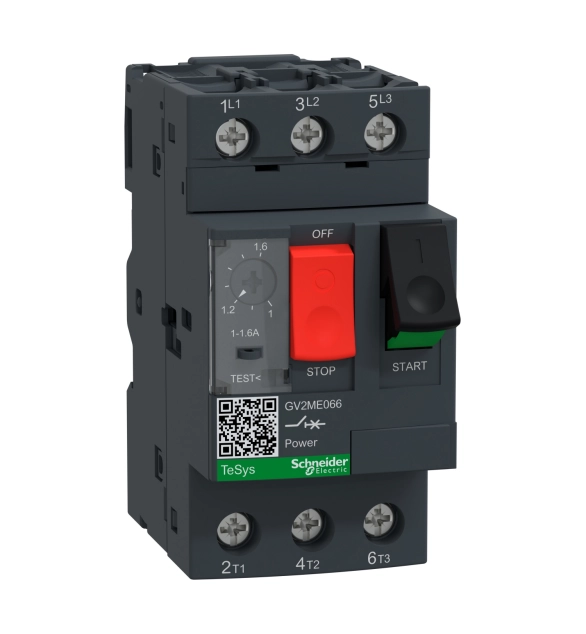

SCHNEIDER ELECTRIC Motor circuit breaker, TeSys GV2, 3P, 1-1.6A, thermal magnetic, lugs terminals

• Brand
  Schneider Electric
• Number of poles
  3
• Rated operating voltage
  690
• Degree of protection (IP)
  EV006405
• Type of control element
  EV000554
• With integrated under voltage release
  FALSE
• Width
  45
• With integrated auxiliary switch
  FALSE
• Phase failure sensitive
  TRUE
• Rated short-circuit breaking capacity lcu at 400 V, AC
  100
• Height
  89
• Device construction
  EV009311
• Rated operation power at AC-3, 400 V
  0.55
• Rated permanent current Iu
  1.6
• Rated operation power at AC-3, 230 V
  0.25
• Adjustment range undelayed short-circuit release
  22.5
• Switch off technique
  EV009462
• With thermal protection
  TRUE
• Depth
  78.2
• Overload release current setting
  1
• Type of electrical connection of main circuit
  EV000154
