V292 Globe Valve, 2-Way, PN25, Flanged, DN125, 250 Kvs, Nodular Iron Body and Stainless Steel Trim, Stem Down Closed | Spark & Co
  • 3D
|

СКУ: 7219266000

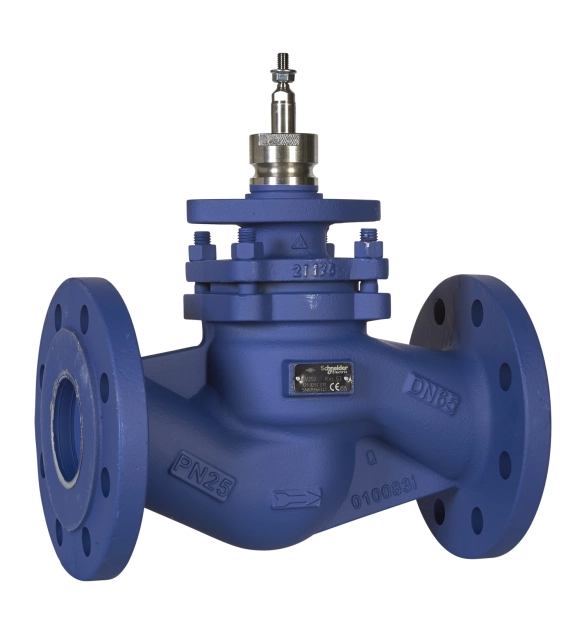

V292 Globe Valve, 2-Way, PN25, Flanged, DN125, 250 Kvs, Nodular Iron Body and Stainless Steel Trim, Stem Down Closed

  • Brand
    Schneider Electric
  • Surface protection
    EV000154
  • Max. medium temperature (continuous)
    130
  • Connection 1
    EV000106
  • Flange compression class
    EV020104
  • Stroke length
    30
  • Suitable for cooling
    FALSE
  • Article compression class
    EV020104
  • Suitable for process water
    TRUE
  • Characteristic curve
    EV021552
  • Suitable for tap water
    TRUE
  • Automatic flow control
    FALSE
  • Min. medium temperature (continuous)
    -10
  • Material housing
    EV000117
  • Material quality
    EV020188
  • Leakage loss of Kvs value
    0.05
  • With flow measuring point
    FALSE
  • DVGW quality mark
    FALSE
  • Tested according to TÜV GS
    FALSE
  • DIN-CERTCO certificate
    FALSE
  • Min. pressure difference
    0.82
  • With coupling connection 1
    TRUE
  • Outer pipe diameter connection 2
    80
  • Outer pipe diameter connection 1
    80
  • Kvs value
    80
  • With coupling connection 2
    TRUE
  • Kv value
    100
  • Suitable for heating
    FALSE
  • Max. pressure difference in opened position
    0.82
  • Nominal diameter connection 2
    EV020216
  • Contour code connection 1
    EV020891
  • Contour code connection 2
    EV020891
  • Connection 2
    EV000106
  • Nominal diameter connection 1
    EV020216

The V292 is a high pressure flanged globe valve for demanding heating and cooling applications. The valve use a stainless steel plug for high close off pressures with a low actuator force. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN150, G External, Flow capacity, Kvs: 350 m³/h. Constructed and flanged to a PN25 pressure class. ΔPm of maximum 14 Kpa. PTFE Seals provide a working temperature range of -10 °C to 150 °C. 50 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Length: 29 mm, Height 23 mm, Width: 185 mm, Weight: 16.7 Kg. Service Kit (main gland seal): 1182.
