СКУ: 7219270000

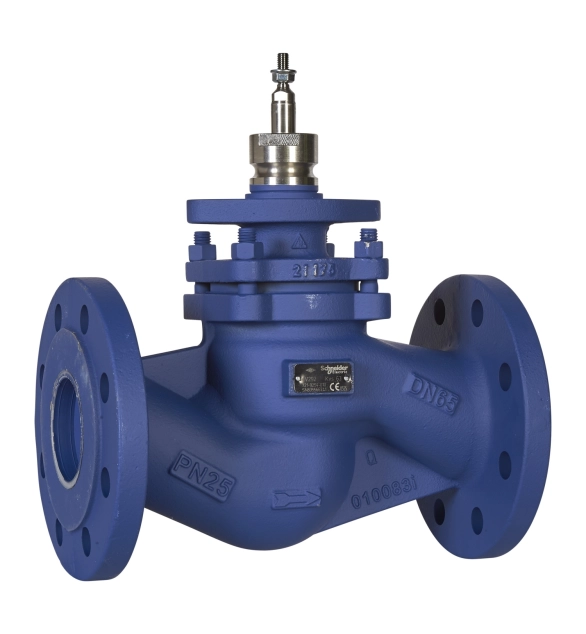

V292 Globe Valve, 2-Way, PN25, Flanged, DN150, 350 Kvs, Nodular Iron Body and Stainless Steel Trim, Stem Down Closed
-
Brand
Schneider Electric
-
Suitable for cooling
TRUE
-
Surface protection
EV006034
-
Connection 1
EV000154
-
Flange compression class
EV020104
-
Article compression class
EV020104
-
Suitable for process water
TRUE
-
Characteristic curve
EV021552
-
Leakage loss of Kvs value
0.02
-
Suitable for tap water
TRUE
-
Min. medium temperature (continuous)
-20
-
Stroke length
20
-
Automatic flow control
FALSE
-
Max. medium temperature (continuous)
150
-
Outer pipe diameter connection 1
50
-
Kvs value
38
-
Nominal diameter connection 1
EV020214
-
Material housing
EV000082
-
Material quality
EV020182
The V311 is a flanged 3-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN40, G External, Flow capacity, Kvs: 25 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 400 Kpa. EPDM seals provide a working temperature range of -20 °C to + 120 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). Flanged to ISO 75-2 (PN16, DN15).
