SCHNEIDER ELECTRIC Contactor, TeSys Giga, 3P (3NO), AC-3 <=440V 150A, 48..130V AC/DC /PO:41252380/ | Spark & Co
  • 3D
|

СКУ: LC1G150EHEA

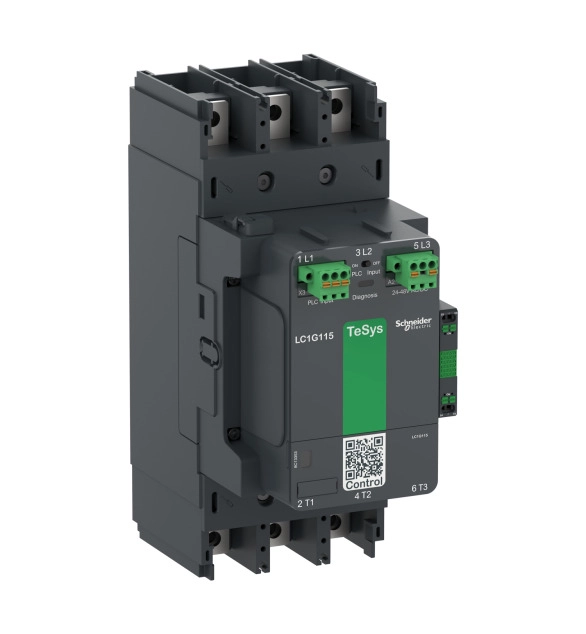

SCHNEIDER ELECTRIC Contactor, TeSys Giga, 3P (3NO), AC-3 <=440V 150A, 48..130V AC/DC /PO:41252380/

  • Brand
    Schneider Electric
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • Voltage type for actuating
    EV000509
  • Rated control supply voltage Us at DC
    24
  • Type of electrical connection of main circuit
    EV008864
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    150
  • Rated operation power at AC-4, 400 V
    75
  • Rated operation power at AC-3, 400 V
    75
  • Rated operation power NEMA
    100
  • Rated operation current Ie at AC-1, 400 V
    275
  • Rated operation current Ie at AC-3, 400 V
    150

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 80A/690V AC-1. It provides a 230V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
