Ултракомпактен стартер, TeSys Hybrid, 3P, 500VAC, 0,75kW при 400V, 24VDC | Spark & Co
  • 3D
|

СКУ: LZ1H2X4BD

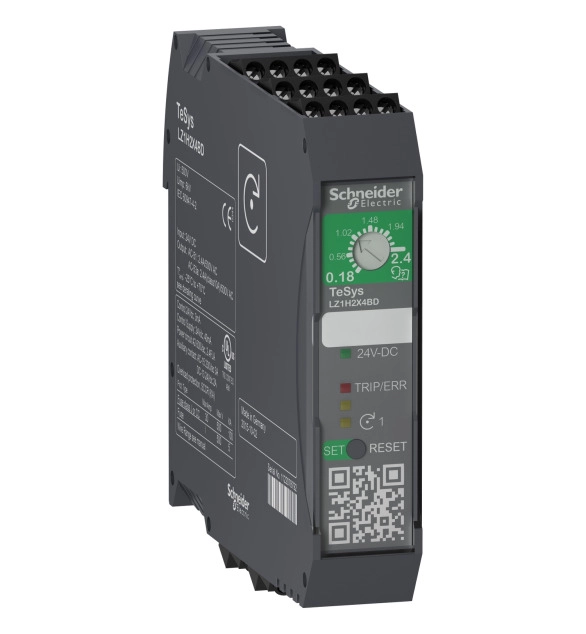

Ултракомпактен стартер, TeSys Hybrid, 3P, 500VAC, 0,75kW при 400V, 24VDC

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Degree of protection (IP)
    EV006405
  • Suitable for emergency stop
    FALSE
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • With transformer
    FALSE
  • Ambient temperature, upper operating limit
    70
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Type of motor starter
    EV004003
  • Rail mounting possible
    TRUE
  • Supporting protocol for other bus systems
    FALSE
  • With fuse
    FALSE
  • Rated operation power at AC-3, 400 V
    0.75
  • Release class
    EV008931
  • With short-circuit release
    FALSE
  • External reset possible
    TRUE
  • Temperature compensated overload protection
    TRUE
  • Rated operation current Ie
    2.4
  • Overload release current setting
    0.18
  • Rated operation current at AC-3, 400 V
    2.4
  • Height
    106.5
  • Width
    22.6
  • Depth
    113.4
  • Rated operation power at AC-3, 230 V, 3-phase
    0.37
  • Rated power, 460 V, 60 Hz, 3-phase
    0.75
  • Number of indicator lights
    3
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of command positions

TeSys H ultra compact direct starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
