Реверсивен ултракомпактен стартер, TeSys Hybrid, безопасно спиране на въртящия момент, 3P, 500VAC, 3kW при 400V, 24VDC, пружинна клема | Spark & Co
  • 3D
|

СКУ: LZ8H6X53BD

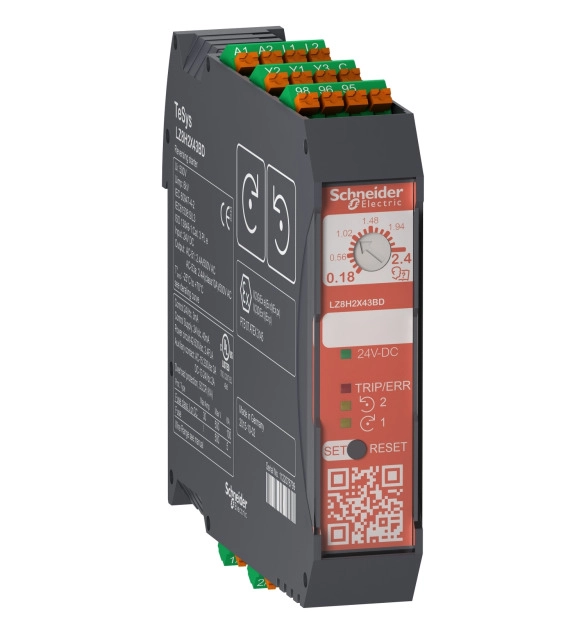

Реверсивен ултракомпактен стартер, TeSys Hybrid, безопасно спиране на въртящия момент, 3P, 500VAC, 3kW при 400V, 24VDC, пружинна клема

  • Brand
    Schneider Electric
  • Rated operation power at AC-3, 400 V
    3
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • With transformer
    FALSE
  • Ambient temperature, upper operating limit
    70
  • Rail mounting possible
    TRUE
  • Supporting protocol for other bus systems
    FALSE
  • With fuse
    FALSE
  • Suitable for emergency stop
    TRUE
  • Type of electrical connection of main circuit
    EV005752
  • Release class
    EV008931
  • Type of motor starter
    EV004002
  • With short-circuit release
    FALSE
  • Rated operation current Ie
    9
  • External reset possible
    TRUE
  • Temperature compensated overload protection
    TRUE
  • Number of indicator lights
    4
  • Width
    22.6
  • Depth
    113.4
  • Overload release current setting
    1.5
  • Rated operation current at AC-3, 400 V
    6.5
  • Rated operation power at AC-3, 230 V, 3-phase
    1.5
  • Rated power, 460 V, 60 Hz, 3-phase
    3
  • Type of electrical connection for auxiliary- and control current circuit
    EV005752
  • Height
    107.5
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of command positions

TeSys H ultra compact reverse safety starter, 3 poles, 6.5A/500V AC-53, for control and protection of 3-phase motors up to 3kW@400V (3HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 1.5-6.5A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
