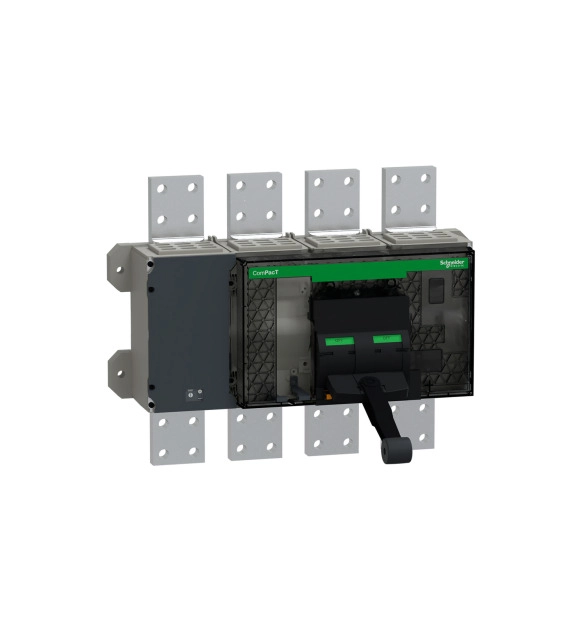

Товаров разединител основен корпус, ComPacT NS2500 тип NA, 4P, фиксиран, ръчно управление, 2500A

This product is a 4 poles ComPacT NS2500NA switch disconnector frame used to control and isolate electrical distribution circuits. This device is in fixed mounting mode and is manually operated. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS2500NA is a 4 poles switch disconnector used to control and isolate electrical distribution circuits. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current (Ie) is 2500A (AC23A), and the conventional thermal current (Ith) is 2500A at 60°C. The operational voltage is 690VAC 50/60Hz. The short-circuit making capacity (Icm) is 135kA peak. The short-time withstand current (Icw) is 32kA rms/3s. The switch disconnector is manually operated with its toggle. This product comes with a variety of optional functions and accessories. This product comes with a variety of optional functions and accessories. The dimensions are 350mm (Heigh) x 535mm (Width) x 160mm (Depth). It is compliant with IEC 60947-1 and IEC60947-3 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
