Серво двигател BMH - 2.5 Nm - 8000 rpm - вал без шпонка - без спирачка - IP54 | Spark & Co
  • 3D
|

СКУ: BMH0702T01A2A

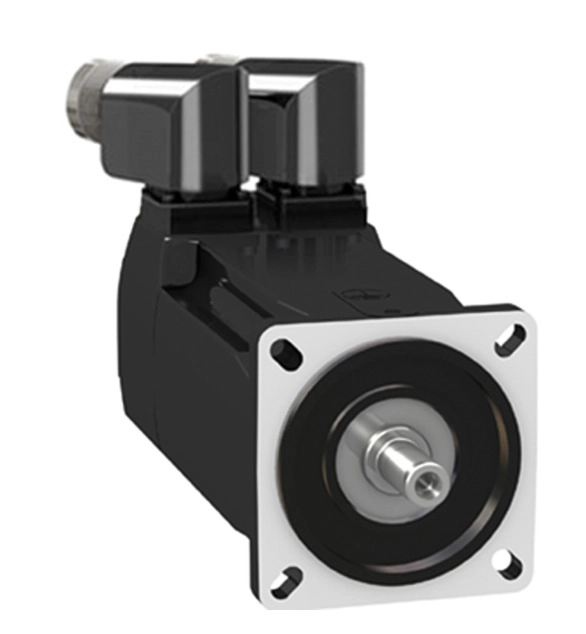

Серво двигател BMH - 2.5 Nm - 8000 rpm - вал без шпонка - без спирачка - IP54

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006421
  • Number of phases
    3
  • Voltage type
    EV000509
  • Rated frequency
    50
  • Rated voltage
    480
  • Material housing
    EV000154
  • Operating temperature
  • Rated current
    3
  • Construction type
    EV000154
  • Bearing
    EV000154
  • Model
    EV006582
  • Motor efficiency class
    EV000154
  • Number of poles
    10
  • Overload capability
    FALSE
  • Cooling method
    EV000154
  • Shaft end type
    EV000154
  • Vacuum pressure impregnation (VPI)
    EV000154
  • With positive temperature coefficient resistor (PTC)
    FALSE
  • With resistance temperature detector (RTD)
    FALSE
  • Intrinsic safety (IS)
    EV000494
  • Suitable for frequency control
    FALSE
  • With anti-condensation
    FALSE
  • Duty cycle
    EV000154
  • Rated rotational speed at rated frequency
    8000
  • Starting torque ratio
  • Breakdown torque ratio
  • Starting current ratio
  • Insulation class according to IEC
    EV000154
  • Rated performance at rated frequency
    0.7
  • Nominal torque
    2.2

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 8000RPM, an untapped shaft end, with a holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 2.94A, a continuous power of 1.51W, and a continuous stall torque of 2.5Nm. Shaft end is IP65 rated, and IP67 with a kit. The motor flange size is 70mm, fixed by 4x 5.5mm holes, the circle diameter of the mounting holes is 82mm and it weighs 3.3kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD12N4, LXM32SD12N4, LXM32MD12N4, and LXM32CD12N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
