СКУ: VZ308E-20BP09

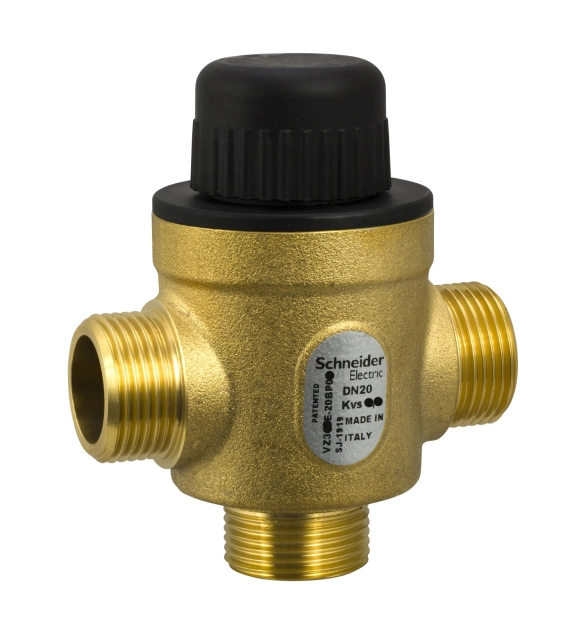

VZ308E Zone Valve, 3-Way, PN16, DN20, G3/4 External Thread, Kvs 6.0 m?/h, 2.5 mm Stroke.
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Surface protection
EV006034
-
Width
98
-
Suitable for manual operation
TRUE
-
Ambient temperature
5
-
Position reporting system
EV000494
-
Auxiliary contacts
FALSE
-
Adjustable operating range
FALSE
-
With coupling connection 1
FALSE
-
With coupling connection 2
FALSE
-
Housing material
EV000149
-
Flange compression class
EV020104
-
Outer pipe diameter all connections
20
-
Control signal
EV020581
-
Adjustable position feedback signal
FALSE
-
With end contacts
FALSE
-
Article compression class
EV020104
-
Leakage loss of Kvs value
0.005
-
Nominal diameter
EV020210
-
Connections
EV000154
-
Zero-pressure return flow
EV000494
-
Characteristic curve
EV020004
-
Max. pressure difference in opened position
16
-
Material quality
EV020186
-
Max. medium temperature (continuous)
95
-
Min. medium temperature (continuous)
5
-
Kvs value
6
-
Height
52
-
Length of connection 2
-
Length of connection 1
-
Working length connection 2
-
Working length connection 1
The VZ308E is a small linear three-way zone valve used for the control of hot or chilled water in terminal units. It is designed to be used with the MZ140 family of thermal actuators. The valves utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. The valve is BSP male threaded valves with flat face seals, a range of connection sets are available to mate onto pipe. Size DN 20, G3/4A connection, 6 Kvs. Pressure class PN16, stroke 2.5 mm, Normally closed (A-Ab). External thread to ISO 228/1 (flat face seal).
