СКУ: GV4PEM80B

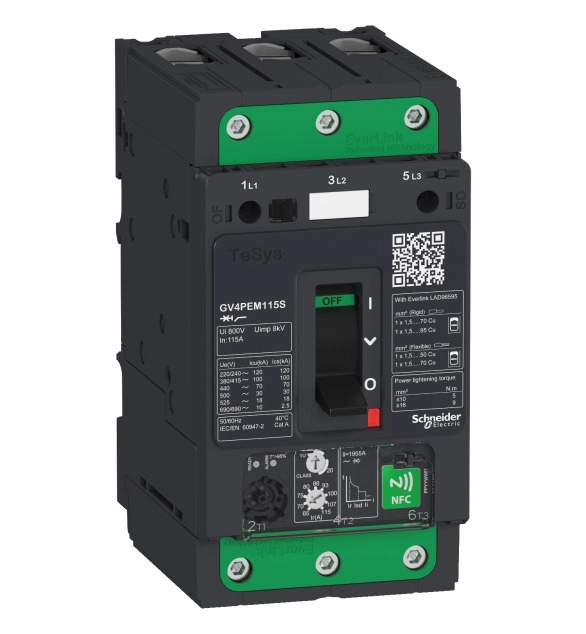

TeSys GV4 - термомагнитна моторна Защита - 80A 3P - Everlink
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated permanent current Iu
80
-
Rated operation power at AC-3, 400 V
37
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Device construction
EV009311
-
With thermal protection
TRUE
-
Rated operation power at AC-3, 230 V
22
-
Type of control element
EV001252
-
Width
81
-
Height
155
-
Switch off technique
EV000101
-
Rated short-circuit breaking capacity lcu at 400 V, AC
25
-
Depth
116
-
Overload release current setting
40
-
Adjustment range undelayed short-circuit release
1360
TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW at 400V. Multifunction circuit breaker, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 25kA at 400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 40-80A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
