СКУ: LC2D123BD

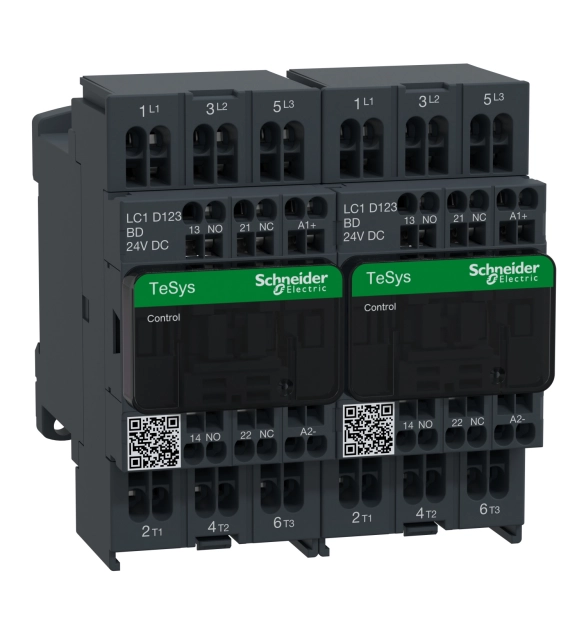

TeSys D reversing контактор - 3P(3 NO) - AC3-<= 440 V 12 A - 24 V DC бобина
-
Brand
Schneider Electric
-
Rated operation power at AC-3, 400 V
5.5
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Rail mounting possible
TRUE
-
Degree of protection (NEMA)
EV000154
-
Type of electrical connection of main circuit
EV005752
-
Function
EV003958
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-3, 400 V
12
-
Type of electrical connection for auxiliary- and control current circuit
EV005752
-
Rated operation power NEMA
5.59
-
Number of normally closed contacts as main contact
-
Rated operation current Ie at AC-1, 400 V
16
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 12A/440V AC-3 (5.5kW@400V). It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), with DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
