SCHNEIDER ELECTRIC Add-on residual current devices, Acti9 Vigi iC40, 3P+N, 25 A, 300 mA, AC type | Spark & Co
  • 3D
  • 3D
|

СКУ: A9Y83725

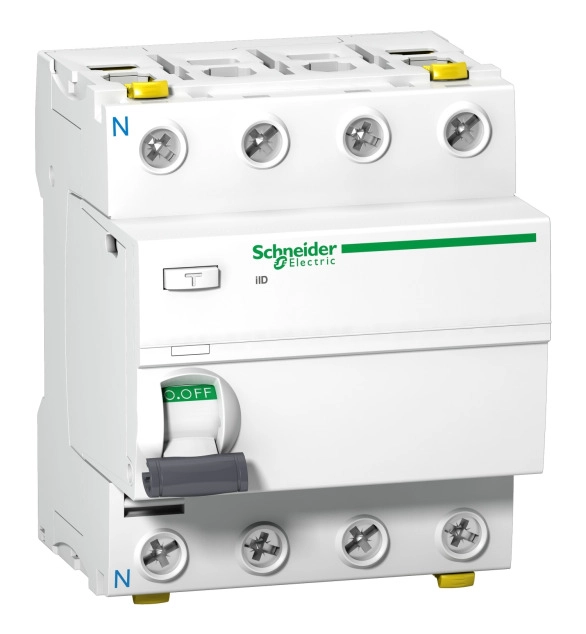

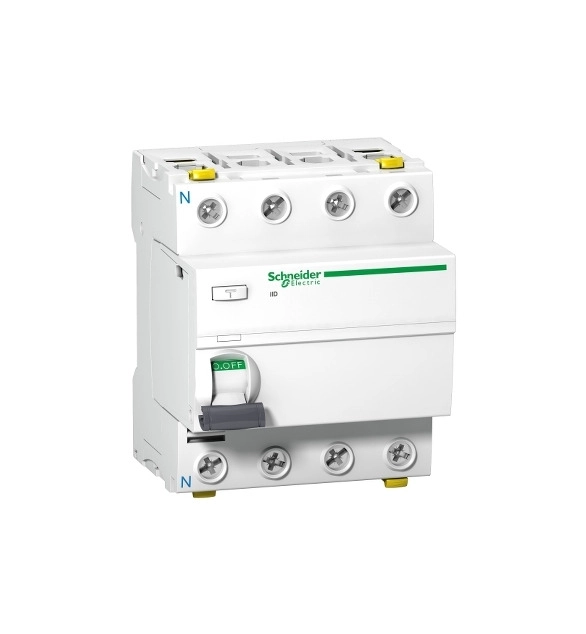

SCHNEIDER ELECTRIC Add-on residual current devices, Acti9 Vigi iC40, 3P+N, 25 A, 300 mA, AC type

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Mounting method
    EV000242
  • Width in number of modular spacings
    4
  • Number of poles
    4
  • Additional equipment possible
    TRUE
  • Rated voltage
    400
  • Explosion-proof
    FALSE
  • Connectable conductor cross section multi-wired
    1
  • Pollution degree
    3
  • Rated current
    40
  • Surge current capacity
    3
  • Ambient temperature during operating
    -25
  • Rated fault current
    0.03
  • Built-in depth
    44
  • Rated impulse withstand voltage Uimp
    6
  • Voltage type
    EV000460
  • Connectable conductor cross section solid-core
    1
  • Short-time delayed tripping
    FALSE
  • Rated insulation voltage Ui
    500
  • Frequency
    EV008013
  • Selective protection
    FALSE
  • With interlocking device
    FALSE
  • Leakage current type
    EV000074

This Acti9 Vigi iC40 is a modular add-on residual current devices. It is a 3P+N and rated current is 25A. The earth leakage protection class is A-SI type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. This product is compliant with EN/IEC 61009-2-1 standard. Electrical endurance goes up to 10000 cycles. Mechanical endurance goes up to 20000 cycles. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 90mm x (H) 99.5mm x (D) 74mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.
