Автоматичен прекъсвач 3P NSX250L без вкл. изключвателно устройство | Spark & Co
  • 3D
|

СКУ: C25L3

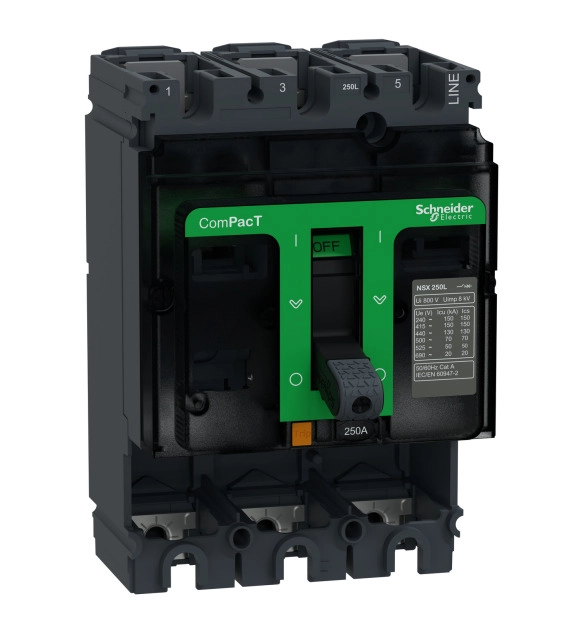

Автоматичен прекъсвач 3P NSX250L без вкл. изключвателно устройство

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Rated permanent current Iu
    250
  • Complete device with protection unit
    FALSE
  • Type of control element
    EV000421
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    150
  • DIN rail (top hat rail) mounting optional
    TRUE
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact

This is a 3 poles basic frame for ComPacT NSX400N. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately. The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 140mm x 255mm x 110mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400N is part of Schneider Electric EcoStruxure Power architecture.
