СКУ: GV6P500H

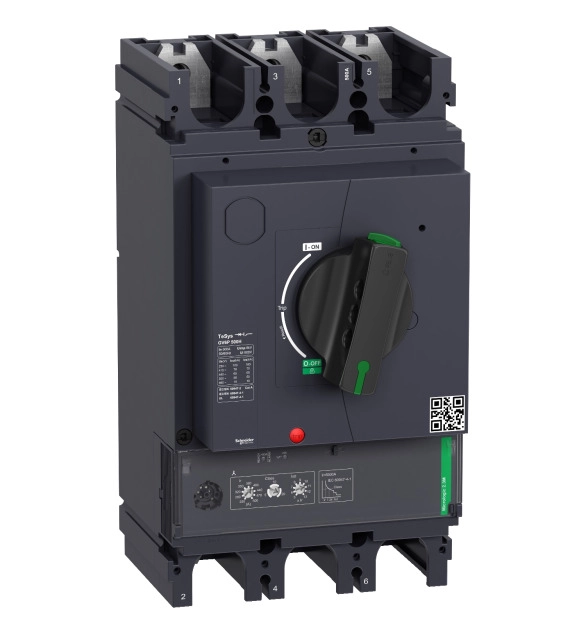

Термомагнитен моторен прекъсвач, TeSys GV6, 3P, 500A, Icu 70kA
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Type of control element
EV000092
-
Width
140
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
500
-
With integrated under voltage release
FALSE
-
With integrated auxiliary switch
FALSE
-
Phase failure sensitive
TRUE
-
Device construction
EV009311
-
Switch off technique
EV009462
-
With thermal protection
TRUE
-
Height
255
-
Rated short-circuit breaking capacity lcu at 400 V, AC
70
-
Adjustment range undelayed short-circuit release
500
-
Overload release current setting
250
-
Rated operation power at AC-3, 400 V
400
-
Depth
179
-
Rated operating voltage
-
Rated operation power at AC-3, 230 V
200
TeSys GV motor circuit breaker, 3 poles (3P), 500A/690V, for protection of 3-phase motors 200-250kW at 400V. It provides thermal magnetic protection and additional protections, breaking capacity Icu 70kA, start-stop control by rotary handle, connection for bars or cables with lugs (direct connection of cables with additional connectors). Thermal protection adjustable by dials with a setting current Ir in range 250-500A and a selectable tripping class 5, 10 or 20, magnetic protection at 13 In. Additional protections with fixed pick-up include short time delay protection Isd at 13 Ir, phase unbalance and loss protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
