Прекъсвач, TeSys GB2, 1P, 8A, Icu 1.5kA при 240V, термомагнитен, монтиран на DIN шина | Spark & Co
  • 3D
|

СКУ: GB2CB14

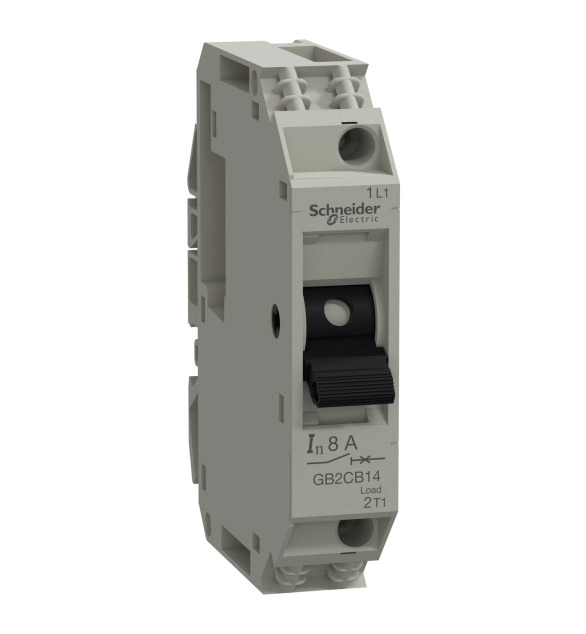

Прекъсвач, TeSys GB2, 1P, 8A, Icu 1.5kA при 240V, термомагнитен, монтиран на DIN шина

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Concurrently switching neutral conductor
    FALSE
  • Width in number of modular spacings
    1
  • Frequency
    50
  • Flush-mounted installation
    FALSE
  • Explosion-proof
    FALSE
  • Number of poles (total)
    1
  • Number of protected poles
    1
  • Voltage type
    EV000460
  • Over voltage category
    3
  • Ambient temperature during operating
    -20
  • Pollution degree
    2
  • Rated impulse withstand voltage Uimp
    4
  • Release characteristic
    EV000154
  • Rated current
    8
  • Built-in depth
    74
  • Rated insulation voltage Ui
    250
  • Additional equipment possible
    FALSE
  • Rated voltage
    250
  • Connectable conductor cross section solid-core
    0.75
  • Current limiting class
    3
  • Connectable conductor cross section multi-wired
    0.75
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    1.5

TeSys GB circuit breaker, 1 pole (1P), 8A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal-magnetic protection with a magnetic tripping level at 108A (13 In) and breaking capacity Icu 1.5kA at 240V. It can also be used for protection of DC loads up to 8A/48V DC-13 with a breaking capacity Icu 1.5kA at 24V. Compact device (15mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 6 units. Multi standards certified (IEC, UL, CSA).
