СКУ: A9A15215

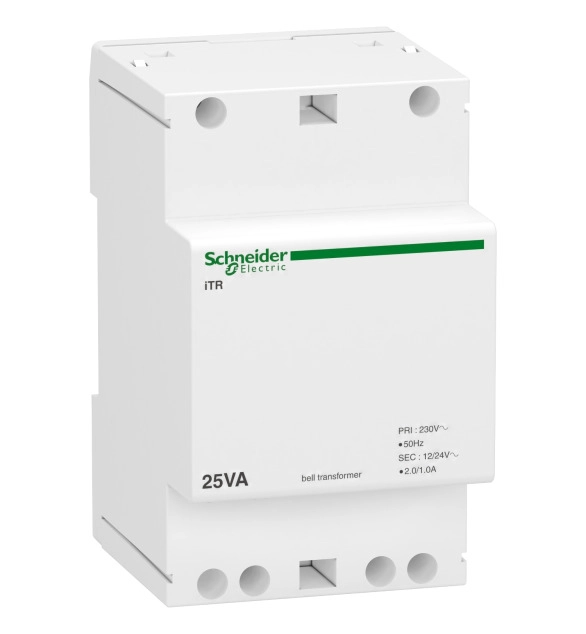

SCHNEIDER ELECTRIC Мodular bell transfomer Acti9, iTR, 230V 50..60Hz, output 12..24V, 25VA
-
Brand
Schneider Electric
-
Width in number of modular spacings
3
-
Flush-mounted installation
FALSE
-
Width
54
-
With on/off switch
FALSE
-
Modular version
TRUE
-
Surface mounting
FALSE
-
Height
89
-
Length
60
-
Primary voltage
230
-
Max. power loss
2
-
Short-circuit protected
TRUE
-
Secondary amperage 1
2
-
Type of transformer
EV006262
-
Secondary voltage 1
12
-
Secondary voltage 2
24
-
Temperature protection
TRUE
-
Secondary amperage 2
1
This Acti9 iTR 25VA safety transformer allows to obtain a very low voltage 12VAC or 24VAC from a network 230VAC. The transformer is safe meaning that primary and secondary circuits are perfectly insulated by each other. The power supply is 25VA. The operating frequency is 50Hz. The primary voltage is 230VAC +/-10%. The secondary voltage output is 12VAC or 24VAC +/-15%. It is resistant to short-circuit currents thanks to the built-in-device. The off load voltage is 16VAC for a 12VAC rated secondary voltage. The off load voltage is 32VAC for a 24VAC rated secondary voltage. It is a Class II device with terminal shield (optional). The bell transformer can be mounted on DIN rail in vertical or horizontal position. The width in 9mm pitches is 6. The weight is 633g. The degree of protection under IEC 60529 standard is IP20 with terminal shield. The dimensions are (W) 54mm x (H) 89mm x (D) 60mm. The width in modules of 18mm is 3. The operating temperature is -20°C to 55°C. The storage temperature is -25°C to 80°C. This product complies with IEC/EN 61558-2-6 standard.
