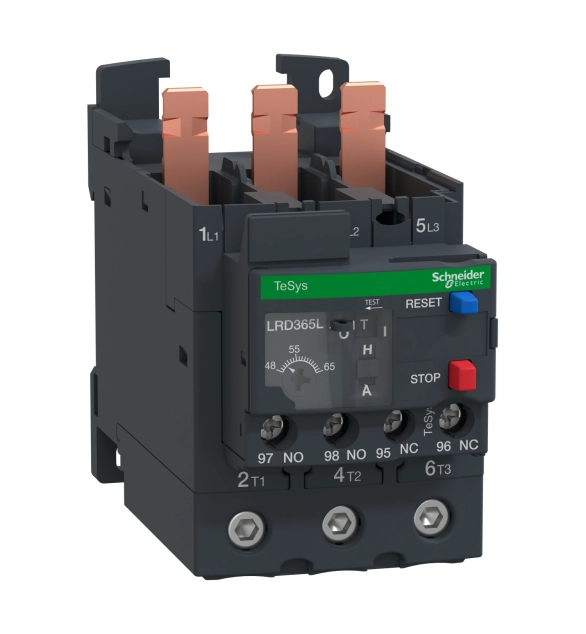

СКУ: LRD365L
Термични защити модел D 48-65A клас 20W
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Mounting method
EV003970
-
Reset function automatic
TRUE
-
Reset function input
FALSE
-
Max. rated operation voltage Ue
690
-
Release class
EV011240
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Reset function push-button
TRUE
-
Number of auxiliary contacts as change-over contact
-
Adjustable current range
80
TeSys U standard reversing power base, 3 poles (3NO), rated 12A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 5.5kW at 400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0B to be supplied with 24V AC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA at 400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
