СКУ: LR3D350
Термични защити модел D 37-50A клас 10A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Reset function automatic
TRUE
-
Reset function input
FALSE
-
Max. rated operation voltage Ue
690
-
Release class
EV011240
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Mounting method
EV008930
-
Reset function push-button
TRUE
-
Adjustable current range
37
-
Number of auxiliary contacts as change-over contact

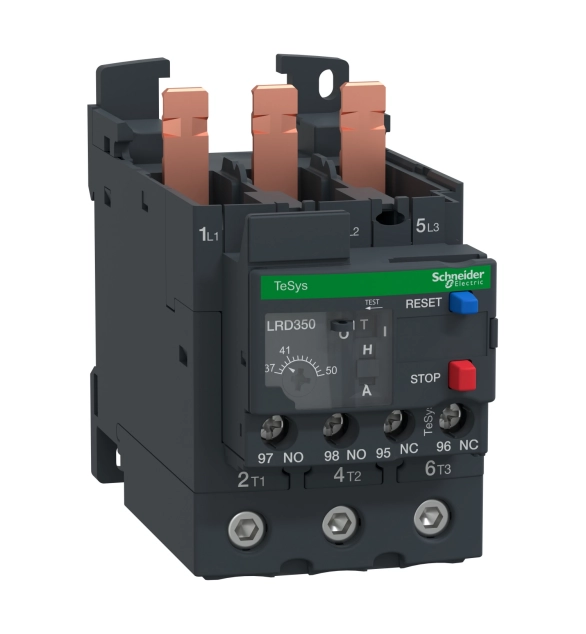

TeSys LRD thermal overload relay, 50A/690V, thermal setting range 37-50A, tripping class 10A, for protection of 3-phase motors 22kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
