СКУ: RE48AML12MW
Таймер MULTI 24-240VAC/DC
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
Suitable for front mounting
TRUE
-
Nominal current
5
-
Depth
80
-
With semiconductor output
FALSE
-
Pluggable on auxiliary contact block
FALSE
-
Clock function, starting with pause, variable
FALSE
-
Clock function, starting with pulse, variable
FALSE
-
Function floating contact on de-energization
FALSE
-
Function pulse shaping
TRUE
-
Function floating contact on energization
FALSE
-
Outputs, reversible delayed/undelayed
FALSE
-
Function star-delta
FALSE
-
Remote operation possible
FALSE
-
Suitable as remote control
FALSE
-
Function delay-on energization
TRUE
-
Height
48
-
Function delay on de-energization
TRUE
-
Function flashing, starting with pause, fixed time
TRUE
-
Function flashing, starting with pulse, fixed time
TRUE
-
Number of outputs, delayed, change-over contact
2
-
With plug-in socket
TRUE
-
Width
48
-
Time range
0.02
-
Number of outputs, delayed, normally open contact
-
Number of outputs, delayed, normally closed contact
-
Number of outputs, undelayed, normally open contact
-
Number of outputs, undelayed, normally closed contact
-
Number of outputs, undelayed, change-over contact

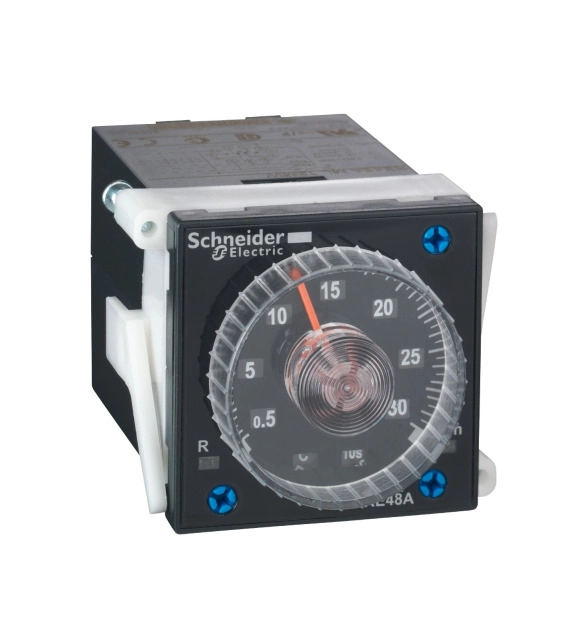

This Harmony RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V to 240V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools.
