СКУ: NSYCRN54150T

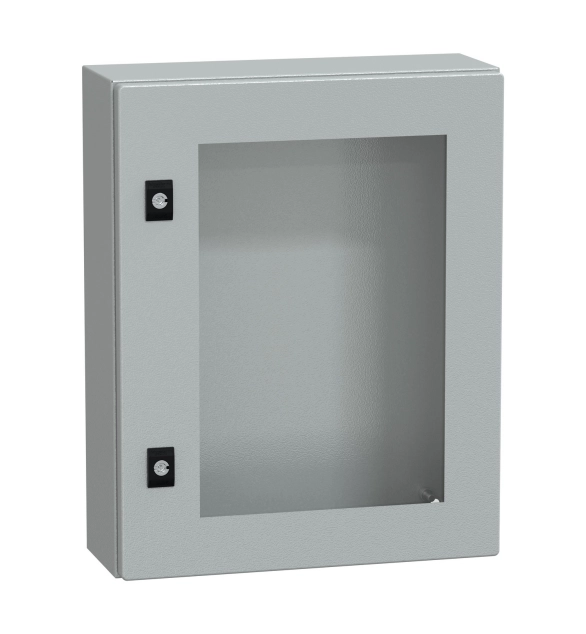

Табло Spacial CRN с прозрачна врата без монтажна плоча, H500xW400xD150 IP66 IK08 RAL7035..

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Depth
    150
  • Degree of protection (IP)
    EV006422
  • Width
    400
  • Height
    500
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    500
  • Max. permissible load of the enclosure according to IEC 62208
    1100
  • Max. permissible load of the door(s) according to IEC 62208
    100

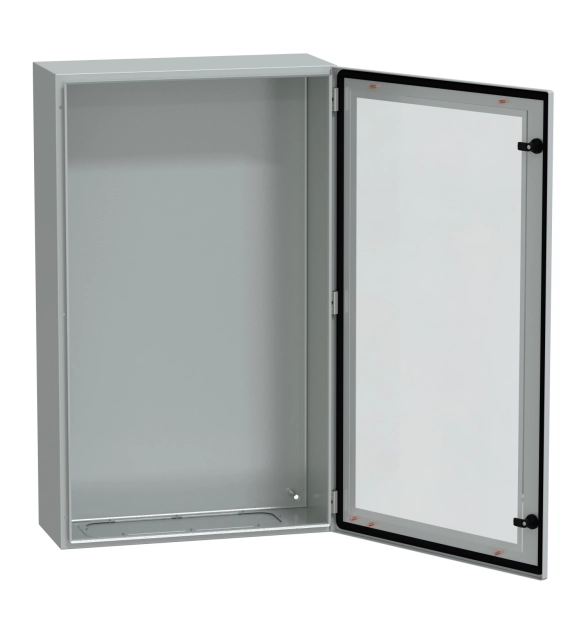

PanelSeT CRN steel wall-mounting enclosure for multi-purpose applications This enclosure is designed to withstand high impact and is built with a IK10 (IEC62262) rating and IP66 rating (IEC60529), making it suitable for harsh environments The enclosure has a nominal height, width, and depth of 500mm, 400mm, and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with a lock, and a mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes, as well as the mounting plate by fixing elements The net weight of the enclosure is 10,928kg The sides are made from a single folded section and the back is welded with double profile forming a protected sealed area The enclosure is accessible for operation from the front
