Стоманено табло за стенен монтаж, Spacial S3D, плътна врата, с монтажна плоча, 600x800x300mm, IP66, IK10 | Spark & Co
  • 3D
|

СКУ: NSYS3D6830P

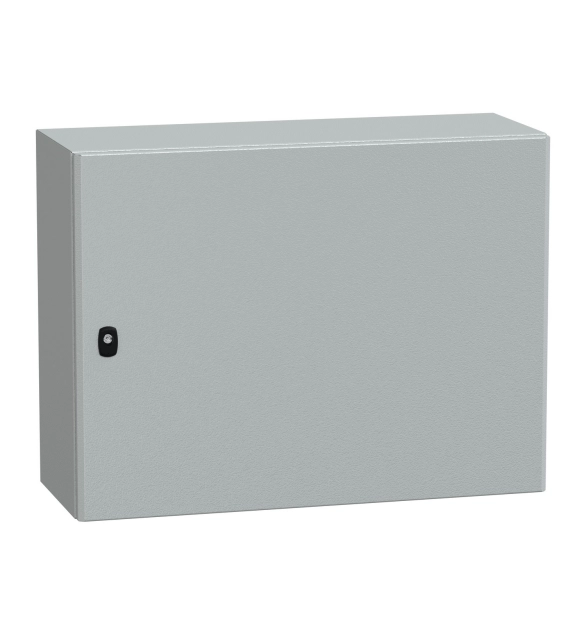

Стоманено табло за стенен монтаж, Spacial S3D, плътна врата, с монтажна плоча, 600x800x300mm, IP66, IK10

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Width
    600
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Depth
    400
  • Material quality
    EV000154
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Height
    600
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

PanelSeT S3D is a multi-purpose wall-mounting steel enclosure with a nominal height, width and depth of 600mm, 600mm and 400mm, respectively It has a grey colour (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one mounting plate, one door with lock and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside and it is also reversible The door is secured with a three-point lock with a 3mm double-bar insert The door, cable gland plate and mounting plate are removable for maintenance purposes The net weight of the enclosure is 23kg It is certified by BV, DNV, cUL, UL, GL and LR The enclosure has a NEMA 4X/13 rating and IK10 (IEC62262) and IP66 (IEC60529) ratings for high impact and dust/water resistance This enclosure has a single piece body and a gutter-shaped front rail double sheet thickness for added strength The accessibility for operation is from the front
