Табло Spacial CRN с плътна врата с монтажна плоча, H600xW600xD300 IP66 IK10 RAL7035.. | Spark & Co
  • 3D
|

СКУ: NSYCRN66300P

Табло Spacial CRN с плътна врата с монтажна плоча, H600xW600xD300 IP66 IK10 RAL7035..

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Width
    600
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (IP)
    EV006422
  • Height
    600
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Depth
    300
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    900
  • Max. permissible load of the enclosure according to IEC 62208
    1580
  • Max. permissible load of the door(s) according to IEC 62208
    180

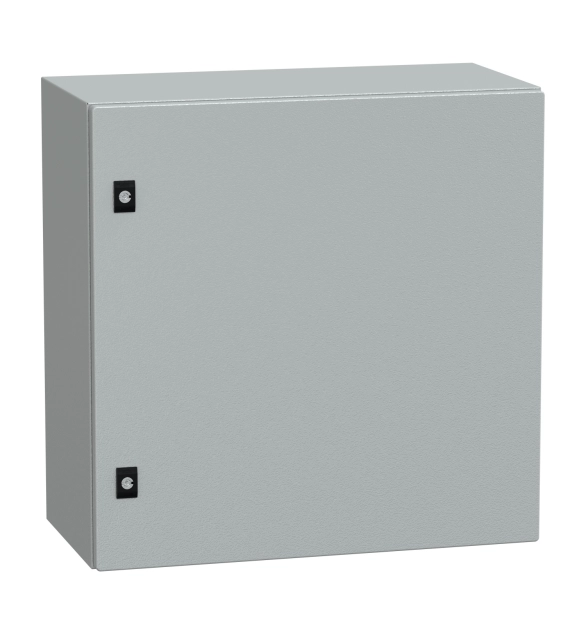

PanelSeT CRN is a multi-purpose steel wall-mounting enclosure specifically designed to be used in harsh environments It has an IK10 (IEC62262) rating and an IP66 rating (IEC60529), making it highly resistant to dust, water, and high impacts The enclosure has a nominal height, width, and depth of 600mm, 600mm, and 300mm, respectively It is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with a lock, and a mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 21,166kg and it is certified by cUL | UL | DNV-GL The sides of the enclosure are made from a single folded section and the back is welded with double profile forming a protected sealed area The accessibility of the enclosure is from the front
