СКУ: C6344V570

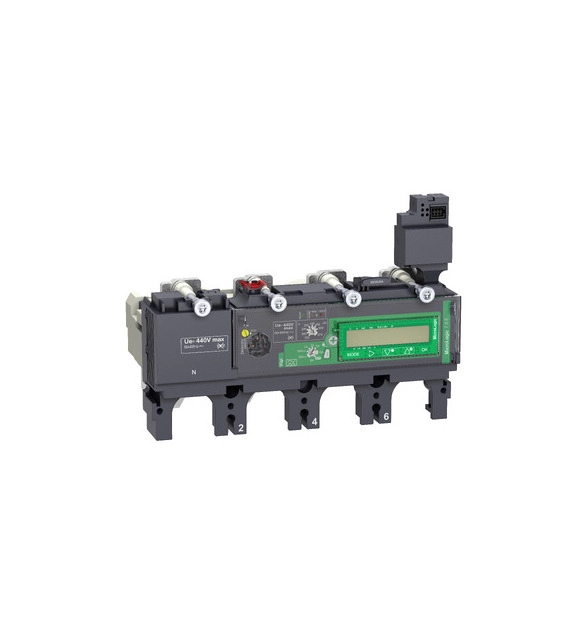

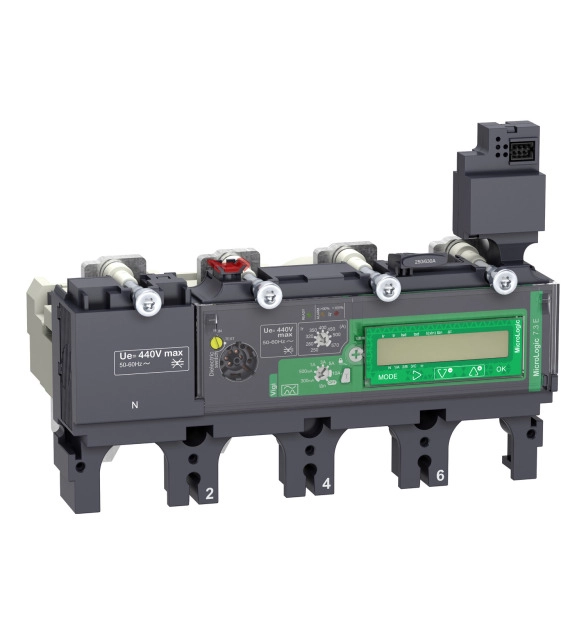

Защитен модул MicroLogic Vigi 4.3, ComPacT NSX630, 4 полюса, електронна базова и защита при утечка към земя, номинален ток 570 A

  • Brand
    Schneider Electric
  • Connection type auxiliary circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • Number of auxiliary contacts as change-over contact
  • With LED indication
    FALSE
  • Suitable for manual operation
    FALSE
  • Interface
    FALSE
  • Number of auxiliary contacts as normally closed contact
    2
  • Mounting method
    EV010333
  • Rated operation current Ie, 400 V
    10
  • Number of auxiliary contacts as normally closed contact, delayed switching
  • Number of auxiliary contacts as normally open contact, leading
  • Number of auxiliary contacts as normally open contact
    2

This MicroLogic 7.3 E (Energy) is a 4 poles 4d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 570A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 7.3 E Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 7.3 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 7.3 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
