СКУ: LVSXDP113
Tабло PrismaSet XS непрозрачна врата 1р 13 модула
-
Brand
Schneider Electric
-
Material
EV000139
-
Colour
EV000202
-
EMC-version
FALSE
-
Degree of protection (IP)
EV006415
-
Width
302
-
Version as door for disconnecting switch interlocking
FALSE
-
Version as glazed door
FALSE
-
Model
EV009234
-
Depth
20
-
Height
750

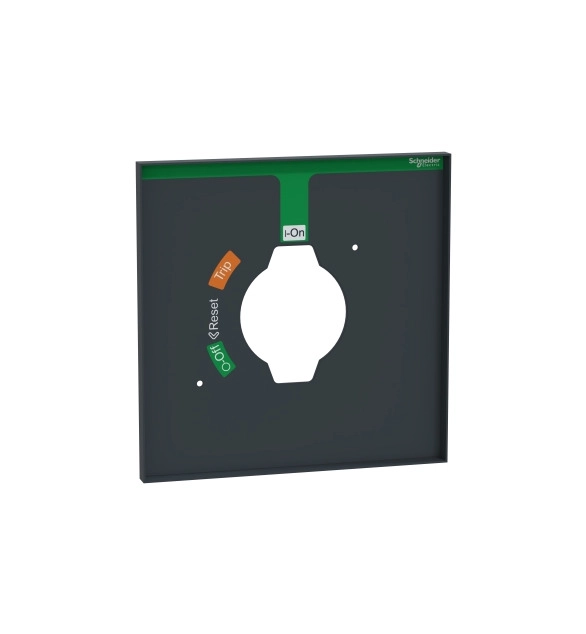

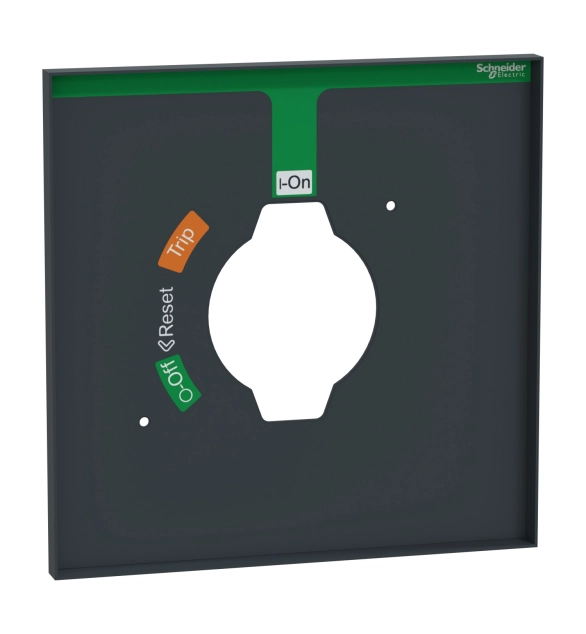

It is an extended rotary handle with a telescopic handle for ComPacT NSX 400/630 and PowerPact Multistandard L frames devices. It is suitable for isolation and it is used for standard applications for withdrawable devices. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This telescopic version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 248mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
