СКУ: A9C30111

Импулсно реле iTL16A 1NO 24Vac 50-60Hz 12Vdc A9C30111

  • Brand
    Schneider Electric
  • Number of contacts as normally open contact
    1
  • Number of contacts as normally closed contact
    1
  • Degree of protection (IP)
    EV006405
  • Width in number of modular spacings
    1
  • Additional equipment possible
    TRUE
  • With day/night function
    FALSE
  • Built-in depth
    43.5
  • Rated operating voltage
    250
  • Utility category
    7
  • Slider for hand switch
    FALSE
  • Voltage type (operating voltage)
    EV000460
  • Voltage type (excitation voltage)
    EV000460
  • Hum-free
    FALSE
  • Rated excitation voltage
    230
  • Rated operation current
    16
  • Max. load fluorescent lamp (parallel compensated)
    800
  • Max. incandescent lamp load
    2000
  • Max. load fluorescent lamp
    850
  • Max. load fluorescent lamp (Duo circuit)
    1500

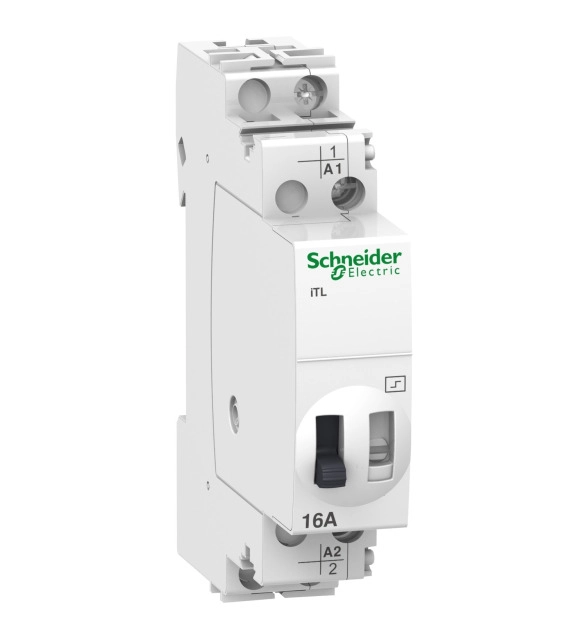

This Acti9 iTL is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 12VAC or 6VDC control voltage. Electrical endurance goes up to 200000 cycles AC-21 or 100000 cycles AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
