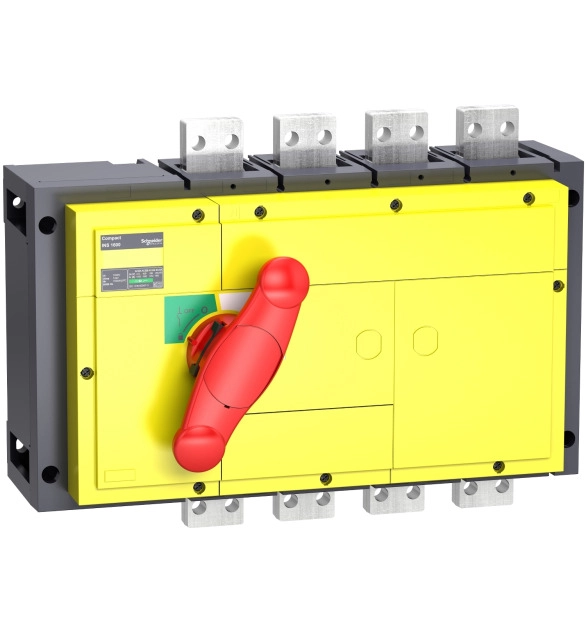

Товаров разединител, Compact INS1250, 1250A, with red rotary handle and yellow front, 4 полюса

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Version as reversing switch
  FALSE
• Suitable for front mounting centre
  TRUE
• Max. rated operation voltage Ue AC
  690
• Number of poles
  3
• Voltage release optional
  FALSE
• Device construction
  EV009211
• Version as safety switch
  FALSE
• Rated operating voltage
  690
• Suitable for front mounting 4-hole
  TRUE
• Number of switches
  1
• Motor drive integrated
  FALSE
• Suitable for intermediate mounting
  FALSE
• Motor drive optional
  FALSE
• Version as main switch
  TRUE
• Interlockable
  TRUE
• Version as maintenance-/service switch
  TRUE
• Suitable for distribution board installation
  TRUE
• Type of control element
  EV004095
• Version as emergency stop installation
  TRUE
• Colour control element
  EV000233
• Degree of protection (IP), front side
  EV006415
• Suitable for floor mounting
  TRUE
• Number of auxiliary contacts as change-over contact
  4
• Rated permanent current Iu
  800
• Rated short-time withstand current lcw
  50
• Rated operation power at AC-23, 400 V
  400
• Rated permanent current at AC-21, 400 V
  800
• Rated permanent current at AC-23, 400 V
  800
• Number of auxiliary contacts as normally closed contact
• Number of auxiliary contacts as normally open contact
