Стоманено табло за стенен монтаж, Spacial S3D, transparent врата, without Монтажна плоча, 600x800x300mm, IP66, IK08 | Spark & Co
  • 3D
|

СКУ: NSYS3D6830T

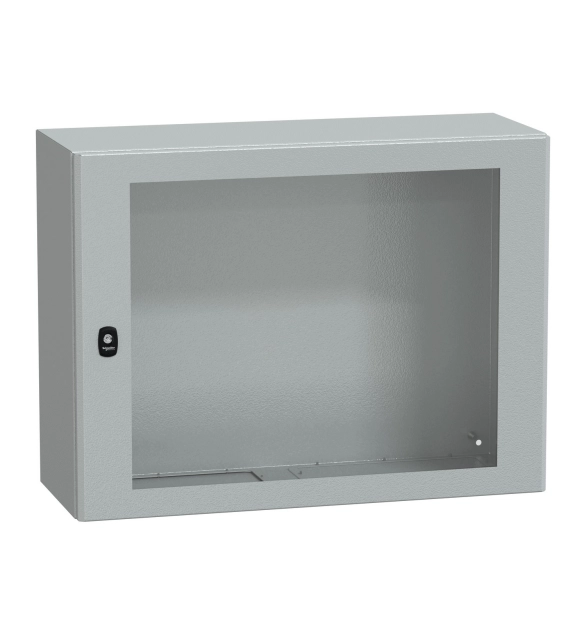

Стоманено табло за стенен монтаж, Spacial S3D, transparent врата, without Монтажна плоча, 600x800x300mm, IP66, IK08

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Width
    500
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Height
    600
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Depth
    250
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

PanelSeT S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width and depth of 600mm, 500mm and 250mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, a plain door with a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door, the cable gland plate and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 17kg and it has been certified by UL, GL, cUL, LR, BV and DNV It has a NEMA 4X/13 rating and an IK10 (IEC62262) as well as an IP66 (IEC60529) rating This enclosure has a gutter-shaped front rail double sheet thickness and a single piece body The accessibility for operation is from the front
