СКУ: NSYCRN55250P

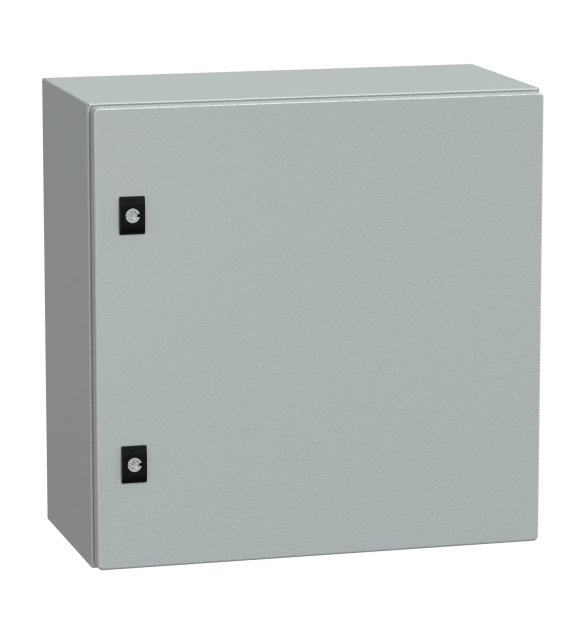

Табло Spacial CRN с плътна врата с монтажна плоча, H500xW500xD250 IP66 IK10 RAL7035..

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Width
    600
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (IP)
    EV006422
  • Height
    400
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Depth
    250
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    600
  • Max. permissible load of the enclosure according to IEC 62208
    1220
  • Max. permissible load of the door(s) according to IEC 62208
    120

PanelSeT CRN is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments It is certified by cUL, UL, and DNV-GL and has an IK10 rating (IEC62262) and an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 600mm, 400mm, and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It consists of a body, a cable gland plate, a plain door with a lock, and a galvanised steel mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door, cable gland plate, and mounting plate can be removed for maintenance purposes The net weight of the enclosure is 12,813kg The sides are made from a single folded section and the back is welded with a double profile, forming a protected sealed area The enclosure is accessible from the front
