Стоманено табло за стенен монтаж, Spacial S3D, plain врата, with Монтажна плоча, 300x300x200mm, IP66, IK10 | Spark & Co
  • 3D
|

СКУ: NSYS3D3320P

Стоманено табло за стенен монтаж, Spacial S3D, plain врата, with Монтажна плоча, 300x300x200mm, IP66, IK10

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Depth
    200
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Height
    300
  • Width
    300
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

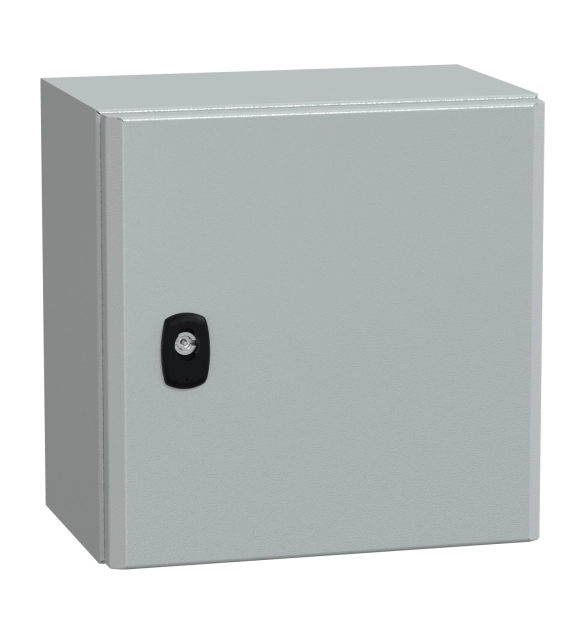

PanelSeT S3D is a multi-purpose wall-mounting steel enclosure designed for use in harsh environments It has a nominal height, width and depth of 300mm, 300mm and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, a plain door with a 3mm double-bar lock, and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door and the cable gland plate can be removed for maintenance purposes, as well as the mounting plate by fixing element The net weight of the enclosure is 5,47kg It is certified by DNV, cUL, GL, BV, LR and UL and has a NEMA 4X/13 rating and an IK10 (IEC62262) and an IP66 (IEC60529) rating This enclosure has a gutter-shaped front rail double sheet thickness and a single piece body for added strength The accessibility for operation is from the front
