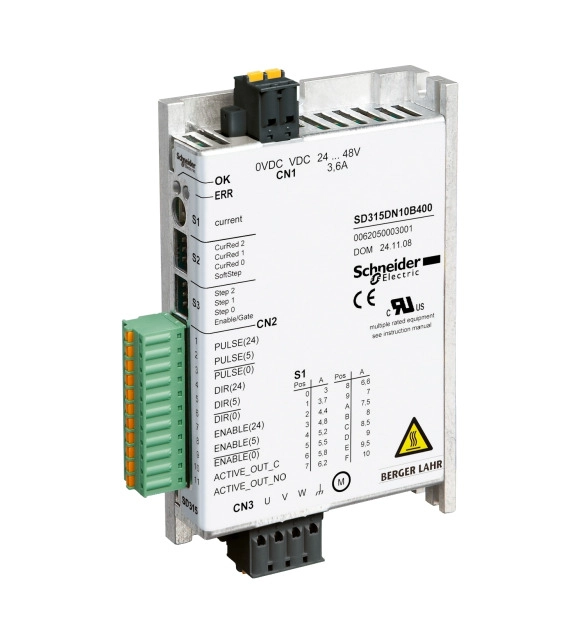

СКУ: SD315DN10B400
Стъпково задвижване
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for other bus systems
TRUE
-
Supporting protocol for SUCONET
FALSE
-
Height
117
-
With control element
TRUE
-
With optical interface
FALSE
-
Number of analogue outputs
1
-
Number of digital inputs
6
-
With PC connection
FALSE
-
Supporting protocol for BACnet
FALSE
-
Number of HW-interfaces RS-422
1
-
Number of digital outputs
2
-
Number of phases output
EV000069
-
Relative symmetric net voltage tolerance
10
-
Relative symmetric net frequency tolerance
5
-
Integrated breaking resistance
FALSE
-
Application in industrial area permitted
TRUE
-
4-quadrant operation possible
FALSE
-
Number of phases input
EV000599
-
Application in domestic- and commercial area permitted
TRUE
-
Nominal output current I2N
10
-
Number of analogue inputs
3
-
Type of converter
EV000154
-
Max. output frequency
200000
-
Max. output voltage
24
-
Mains voltage
24
-
Mains frequency
EV008013
-
Width
74.5
-
Depth
23.5
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of HW-interfaces RS-485
-
Number of HW-interfaces industrial Ethernet
-
Number of HW-interfaces RS-232
-
Number of HW-interfaces other
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. It is a motor drive with a rated supply voltage of 24V to 48V and a motor phase current of 10A. It features natural convection cooling. It is an IP20 rated product. Its dimensions are 74.5mm (width) x 23.5mm (depth) x 117mm (height). It weighs 0.25kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. This product is certified by CE, CUL and UL. It meets EN/IEC 50178, EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2 and EN/IEC 61800-3 standards. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
