Реверсивен контактор 25A 1F+1O 24V 50/60 | Spark & Co
  • 3D
|

СКУ: LC2D25U7

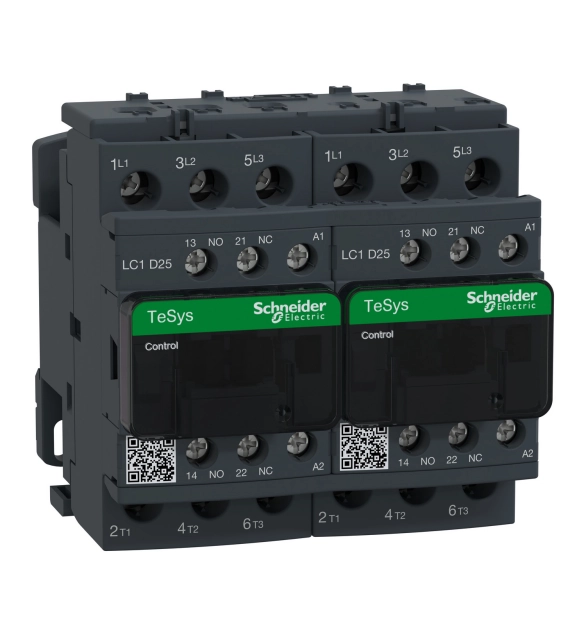

Реверсивен контактор 25A 1F+1O 24V 50/60

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    11
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000460
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Rail mounting possible
    TRUE
  • Degree of protection (NEMA)
    EV000154
  • Rated control supply voltage Us at AC 50HZ
    230
  • Rated control supply voltage Us at AC 60HZ
    230
  • Function
    EV003958
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    40
  • Rated operation current Ie at AC-3, 400 V
    25
  • Rated operation power NEMA
    11.2

TeSys LE enclosed DOL starter for 3P non-reversing motor control up to 11kW at 400V. It includes a contactor LC1D with a 380V AC 50/60Hz control circuit. ON/OFF motor control by a green start push-button (I) and a red stop/reset push-button (O). Polycarbonate enclosure providing IP65 protection. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. To operate, it must be fitted with a LRD thermal overload relay depending on the motor power (to be ordered separately). Conforming to IEC 60947-4-1, environmental compliant (RoHS/REACh).
