Spacial S3D tspt врата w/o mount.plate H600xW600xD300.IP66 IK08 RAL7035. | Spark & Co
  • 3D
|

СКУ: NSYS3D6630T

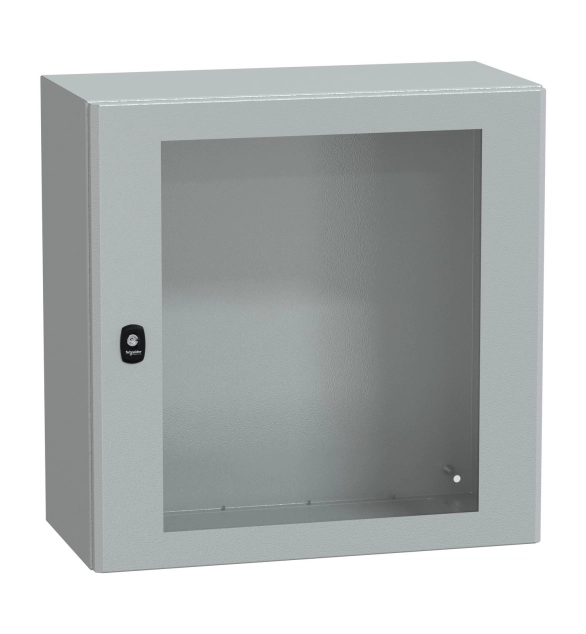

Spacial S3D tspt врата w/o mount.plate H600xW600xD300.IP66 IK08 RAL7035.

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Width
    400
  • Height
    600
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Depth
    250
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed to withstand harsh environments It has a nominal height, width and depth of 600mm, 400mm and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a galvanised steel mounting plate, a plain door with a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 15kg and it is certified by LR, cUL, DNV, UL, GL and BV It has a NEMA 4X/13 rating and offers high impact protection with an IK10 (IEC62262) rating It is also highly resistant to dust and water with an IP66 rating (IEC60529) The enclosure features a single piece body and a gutter-shaped front rail double sheet thickness The accessibility for operation is from the front
