SpaceLogic VP228E PIBCV (PICV), 2-Way, PN16, DN20, G1 Ext. Thread, Std Flow: 0.18...0.9 m?/h (0.05...0.25 l/s). | Spark & Co
  • 3D
|

СКУ: VP228E-20BQS

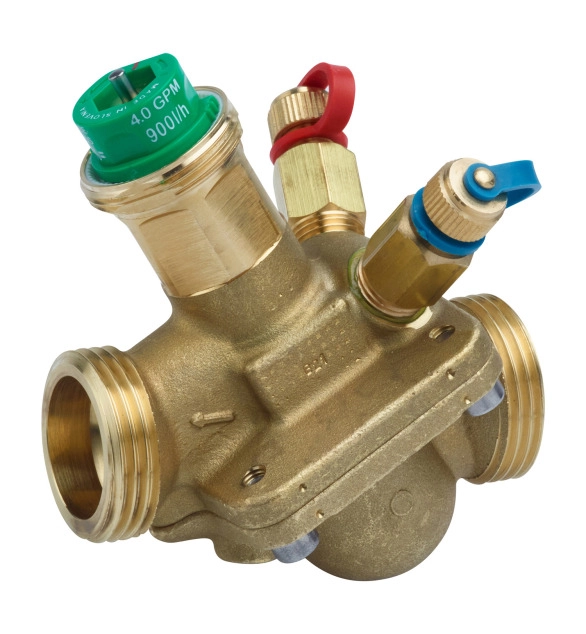

SpaceLogic VP228E PIBCV (PICV), 2-Way, PN16, DN20, G1 Ext. Thread, Std Flow: 0.18...0.9 m?/h (0.05...0.25 l/s).

  • Brand
    Schneider Electric
  • Explosion-proof
    FALSE
  • Surface protection
    EV006034
  • Suitable for manual operation
    TRUE
  • Position reporting system
    EV000494
  • Ambient temperature
    -10
  • Auxiliary contacts
    FALSE
  • Adjustable operating range
    FALSE
  • With coupling connection 1
    FALSE
  • With coupling connection 2
    FALSE
  • Housing material
    EV000149
  • Flange compression class
    EV020104
  • Leakage loss of Kvs value
    0.01
  • Outer pipe diameter all connections
    20
  • Adjustable position feedback signal
    FALSE
  • Width
    66
  • Control signal
    EV021430
  • With end contacts
    FALSE
  • Article compression class
    EV020104
  • Max. medium temperature (continuous)
    120
  • Min. medium temperature (continuous)
    -10
  • Nominal diameter
    EV020210
  • Connections
    EV000154
  • Height
    32
  • Zero-pressure return flow
    EV000494
  • Closing pressure
    16
  • Characteristic curve
    EV020004
  • Max. pressure difference in opened position
    16
  • Material quality
    EV020186

The VP228E is an automatic balancing and control valve that provide flow limitation with full control authority over hydronic regulation. It provides stable flow regulation regardless of pressure fluctuations in the system and is adjustable flow limitation set point. Applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels. Reduced Energy Consumption, Improved Comfort, Reduced Pumping Costs, Reduced Installation Costs, Easy and quick Comminssioning, and Improved Reliability. DN20 , Threaded Valve G 1A. Standard Flow.
