СКУ: PKF32M735
Контакт подвижен 3P+N+E 380V 32A IP67 PKF32M735
-
Brand
Schneider Electric
-
Material
EV000139
-
RAL-number
7035
-
Connection system
EV001008
-
Voltage according to EN 60309-2
EV011415
-
Identification colour
EV000233
-
Degree of protection (IP)
EV006423
-
Clock hour position
6
-
Military model
FALSE
-
Number of poles
5
-
Angle of plug
EV000164
-
IEC-amperage
32
-
Cable entry
EV000154

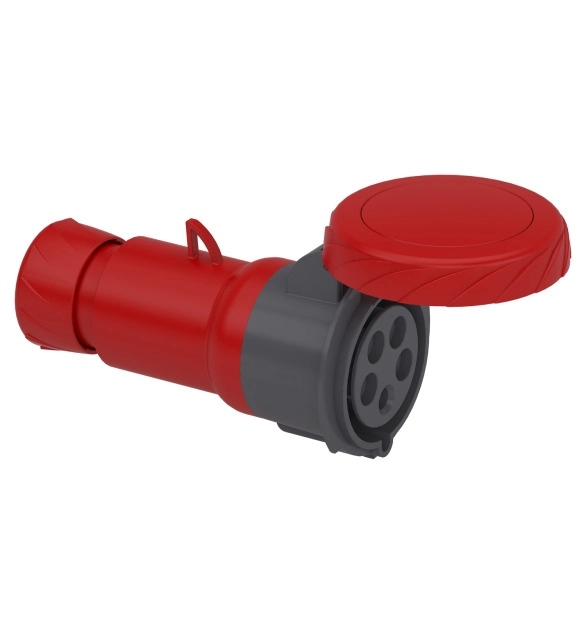

This Pratika industrial wander socket with captive screws connection is straight. It has 3P+N+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 104mm x (H) 104mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm² to 10mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
