СКУ: MP2000-SRD

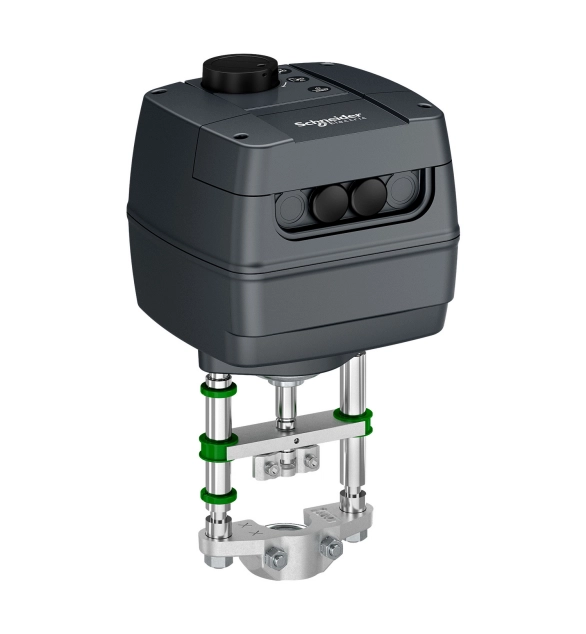

SpaceLogic MP2000-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Normally Closed), 24 Vac/dc, 2000 N, 2xSPDT
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Material housing
EV000154
-
Degree of protection (IP)
EV006419
-
Suitable for manual operation
TRUE
-
Potential free switch contact
FALSE
-
Connection to stop valve
EV000154
-
Adjustable position feedback signal
TRUE
-
Control signal
EV000154
-
Deactivated when closed
TRUE
-
Regulation type splitrange
FALSE
-
Regulation type modulating
TRUE
-
Model
EV020004
-
Return at zero supply voltage
FALSE
-
Regulation type on/off
FALSE
-
Suitable for air accessory
FALSE
-
Suitable for valve
TRUE
-
Auxiliary contacts optional
FALSE
-
With safety function
TRUE
-
Adjustable operating range
TRUE
-
Degree of protection (NEMA)
EV000069
-
Auxiliary contacts
FALSE
-
End contacts
EV000494
-
With top flange direct mount according to ISO 5211
FALSE
-
Adjusting force
2000
-
Self-adjusting travel length
TRUE
-
Ambient temperature
-40
-
Automatic travel recognition
TRUE
-
Allowable relative humidity
5
-
With mechanical setting indicator
TRUE
-
Supply voltage
EV021685
-
Operating time
120
-
Position reporting system
EV007983
-
Max. electric power input
15
-
Height
418
-
Width
208
-
Depth
186
-
Type of safety function
EV008419
-
Stroke length
50
-
Principle of operation safety function
EV015556
The MP2000 spring return safety function is fine regualtion of large control valves under the demand of the HVAC controller. The actuator can be controlled by either a modulating or 3 point control signal and is used specially with the VP221x SmartX PIBCV valves. With automatic stroke calibration function, and anti-oscillation function. Nominal voltage: 24 Vac/Vdc. Force : 2000 N. Grade of enclosure IP54, NEMA Type 2. Stroke 5 mm.
