СКУ: NSYSDR200D

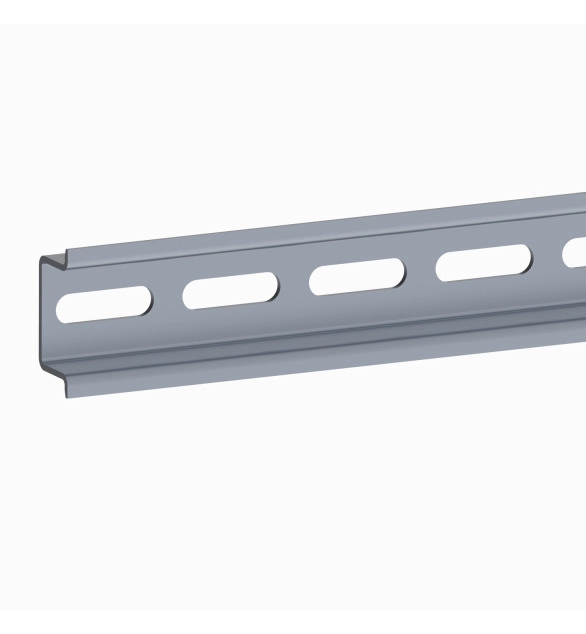

SCHNEIDER ELECTRIC DIN symmetric mounting rail perforated 35x15 L=2000mm
-
Brand
Schneider Electric
-
RAL-number
7035
-
Colour
EV000270
-
Material
EV000914
-
Max. load capacity
1500
-
Width
1200
-
Height
45
-
Model
EV006658
-
Suitable for enclosure building depth
500
-
Depth
500
-
Suitable for enclosure building width
1200
PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It has a nominal height, width and depth of 800mm, 600mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish and is certified by DNV, GL, BV, cUL, UL and LR It is rated NEMA 4X/13 and is highly resistant to dust and water with an IP66 rating (IEC60529) The enclosure consists of a body, one plain door, one cable gland plate and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 25kg It has a gutter-shaped front rail double sheet thickness and a single piece body for added strength and durability It is accessible for operation from the front
