SpaceLogic M700-SRSU Actuator for Globe Valves, Multi-Signal Control, Spring Return Stem Up, 24 Vac/dc, 700 N, IP55 | Spark & Co
  • 3D
|

СКУ: 8800430000

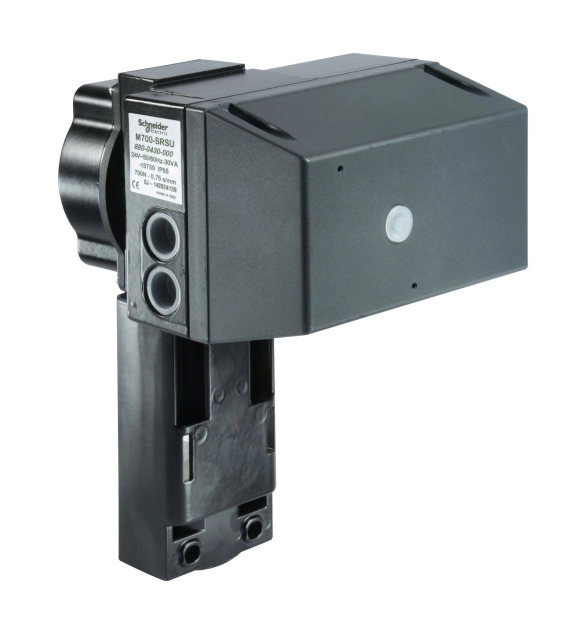

SpaceLogic M700-SRSU Actuator for Globe Valves, Multi-Signal Control, Spring Return Stem Up, 24 Vac/dc, 700 N, IP55

  • Brand
    Schneider Electric
  • Explosion-proof
    FALSE
  • Degree of protection (IP)
    EV006419
  • Suitable for manual operation
    TRUE
  • Potential free switch contact
    FALSE
  • Connection to stop valve
    EV000154
  • Adjustable position feedback signal
    TRUE
  • Control signal
    EV000154
  • Supply voltage
    EV021410
  • Regulation type splitrange
    FALSE
  • Regulation type modulating
    TRUE
  • Model
    EV020004
  • Return at zero supply voltage
    FALSE
  • Regulation type on/off
    FALSE
  • Suitable for air accessory
    FALSE
  • Position reporting system
    EV000494
  • Self-adjusting travel length
    FALSE
  • Suitable for valve
    TRUE
  • Ambient temperature
    -10
  • Auxiliary contacts optional
    FALSE
  • Material housing
    EV000072
  • With safety function
    TRUE
  • Adjustable operating range
    TRUE
  • Automatic travel recognition
    FALSE
  • Type of safety function
    EV000154
  • With mechanical setting indicator
    FALSE
  • Degree of protection (NEMA)
    EV000069
  • Auxiliary contacts
    FALSE
  • End contacts
    EV000494
  • With top flange direct mount according to ISO 5211
    FALSE
  • Max. electric power input
    50
  • Height
    223
  • Torque
    20
  • Width
    222
  • Operating time
    60
  • Stroke length
    52
  • Adjusting force
    700
  • Depth
    209
  • Allowable relative humidity

The SpaceLogic M700 is a spring return electro-mechanical actuator for the control of two-way and three-way globe valves. The electronic circuitry of the actuator ensures that the running time is the same, regardless of the stroke of the valve in question. The actuators is easy to mount and connect. Modulating control signal or increase/decrease signal, Stem Up spring action (the stem is pulled up when power off). Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 v, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 700 N, IP 54 Protection class. Stroke: 9-52 mm. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal.
