СКУ: LC1DT25BD

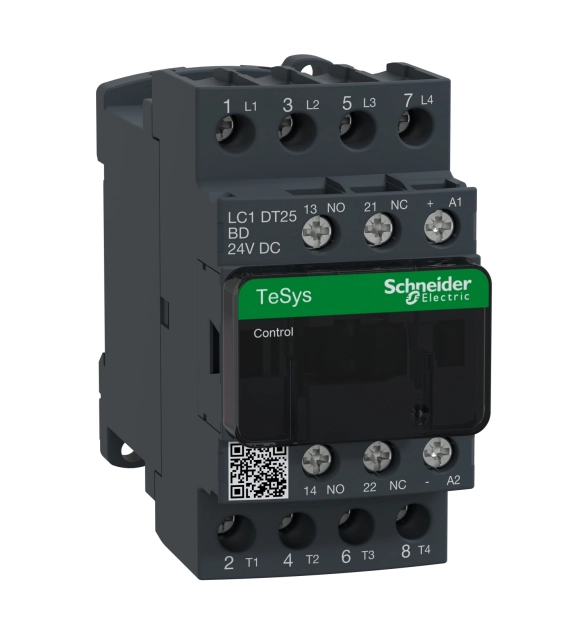

SCHNEIDER ELECTRIC Contactor - 4P(4NO), AC-1, <=440V 25A, 24V DC standard coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    240
  • Rated control supply voltage Us at AC 60HZ
    240
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Rated operation current Ie at AC-1, 400 V
    20
  • Number of normally open contacts as main contact
    4

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 25A/440V AC-1. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
