СКУ: XB4BC42GEX

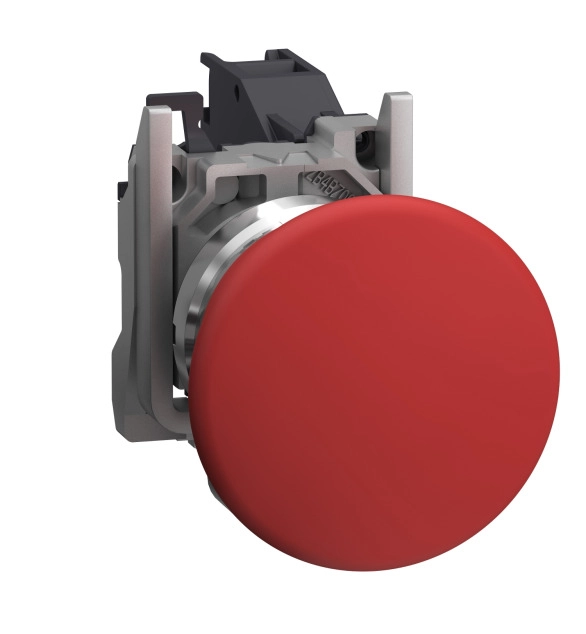

Сглобен бутон, Harmony XB4, Експлозивна атмосфера, бутон тип гъба, червен
-
Brand
Schneider Electric
-
Number of contacts as normally closed contact
1
-
Degree of protection (IP)
EV006421
-
Type of electric connection
EV005752
-
Colour front ring
EV000291
-
Hole diameter
22.5
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Switching function latching
FALSE
-
Degree of protection (NEMA)
EV000154
-
Colour button
EV000233
-
Number of command positions
1
-
Spring-return
TRUE
-
Material front ring
EV000914
-
Type of button
EV000280
-
Number of contacts as change-over contact
-
Number of contacts as normally open contact
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. It is a red pushbutton with mushroom head. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This mushroom headed pushbutton provides an ergonomic interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 40mm mushroom diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
