Сензор за вятър с 0-10 V интерфейс и отопление, полярно бяло | Spark & Co
  • 3D
|

СКУ: MTN663592

Сензор за вятър с 0-10 V интерфейс и отопление, полярно бяло

  • Brand
    Schneider Electric
  • Colour
    EV000202
  • Mounting method
    EV000384
  • Degree of protection (IP)
    EV006421
  • RAL-number (similar)
    9010
  • Bus system KNX radio
    FALSE
  • Bus system Powernet
    FALSE
  • Bus system KNX
    FALSE
  • Bus system LON
    FALSE
  • Weather station
    FALSE
  • Bus system radio frequent
    FALSE
  • Other bus systems
    EV000494
  • Acoustic signal
    FALSE
  • With DCF77
    FALSE
  • Analogue input
    FALSE
  • Radio frequent bidirectional
    FALSE
  • With heating
    TRUE
  • Model
    EV002610

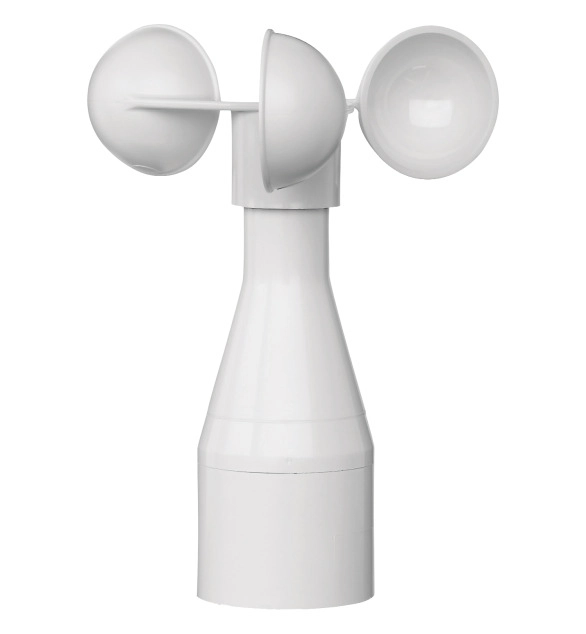

Wind sensor with 0-10 V interface and heating. The wind sensor evaluates the wind speed and converts it into an analogue 0-10 V output voltage. The integrated heater can be operated via an external power supply of AC 24 V/500 mA for trouble-free operation in frosty weather. For external installation and connection to the weather station REG-K/4-gang or the analogue input REG-K/4-gang. These two devices provide the supply voltage necessary to operate the sensor. Measuring range: 0.7-40 m/s, linear. Output: 0-10 V. External power supply: Voltage: 24 V DC (18-32 V DC). Power consumption: approx. 12 mA. Heating: 24 V DC/AC PTC element (80° C). Type of protection: IP 65. Load: max. 60 m/s transient. Incoming cable: 3 m, LiYY 6 x 0.25 mm². Fixing method: Mounting bracket. Mounting position: vertical. Contents: With mounting bracket. Colour: polar white.
