СКУ: 56270

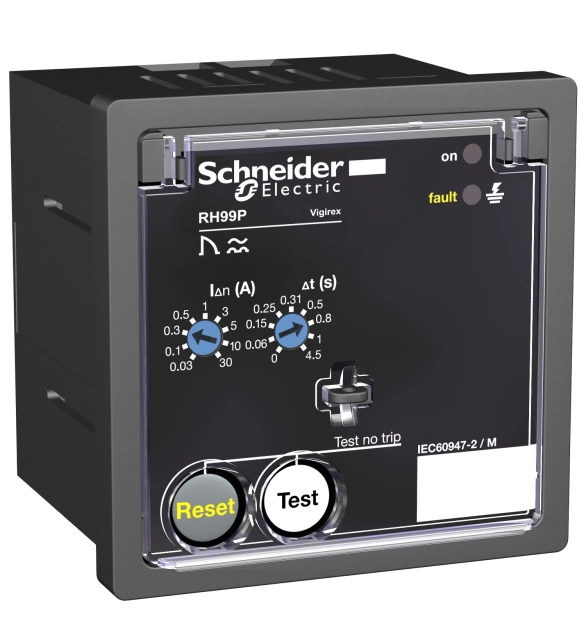

SCHNEIDER ELECTRIC Residual current protection relay VigiPacT RH99P, 30mA-30A, 12/24VAC, 12/48VDC
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as change-over contact
1
-
Error registration possible
FALSE
-
Indication of difference current
FALSE
-
With detachable clamps
FALSE
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
12
-
Rated control supply voltage Us at AC 60HZ
12
-
Rated frequency
50
-
Rated control supply voltage Us at DC
12
-
Function
EV005830
-
Response value amperage 1
0.03
-
Max. permitted delay-on energization time
4.82
-
Width
72
-
Type of electric connection
EV005755
-
Depth
78
-
Height
72
-
Rated voltage
-
Number of contacts as normally closed contact
-
Min. adjustable delay-on energization time
VigiPacT RH99P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 12/24VAC 50/60Hz, or 12/48VDC. It is a type A earth-leakage protection class. The current sensitivity (IDn) is selectable with 9 thresholds from 30mA to 30A. The time delay (Dt) is selectable with 9 settings from instantaneous to 4.5s. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
