СКУ: NSYTRALF1610

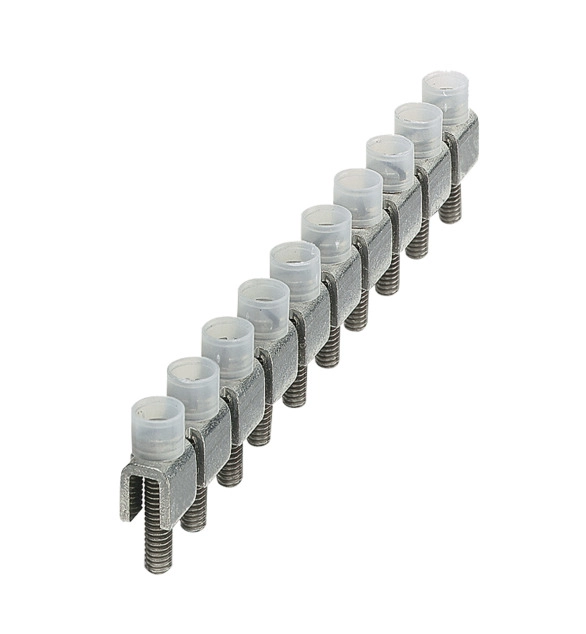

SCREW BRIDGE, 10PTS, FOR NSYTRV162SF
-
Brand
Schneider Electric
-
Mounting method
EV005503
-
Number of levels
1
-
Type of electrical connection 1
EV000415
-
Inflammability class of insulation material according to with UL94
EV004429
-
Material insulation body
EV000403
-
Width
8.2
-
Type of electrical connection 2
EV000415
-
Connectable conductor cross section solid-core
0.2
-
Closing plate required
TRUE
-
Connectable conductor cross section fine-strand with cable end sleeve
0.2
-
Connectable conductor cross section multi-wired
0.2
-
Operating temperature
-40
-
Number of clamp positions per level
2
-
Connectable conductor cross section fine-strand without cable end sleeve
0.2
-
Depth
100.8
-
Height
49.6
-
Colour
EV000120
-
PEN function possible
FALSE
This PanelSeT SFN is a floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2000 mm, 600 mm and 800 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The door and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, one plain door, one rear panel, one roof, two sliding rails and one set of quick-fixing mounting plate brackets. The door has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.
